1. Please note that the question and answer differs from any posted before on Chegg, please don't copy they are different. I will upvote!

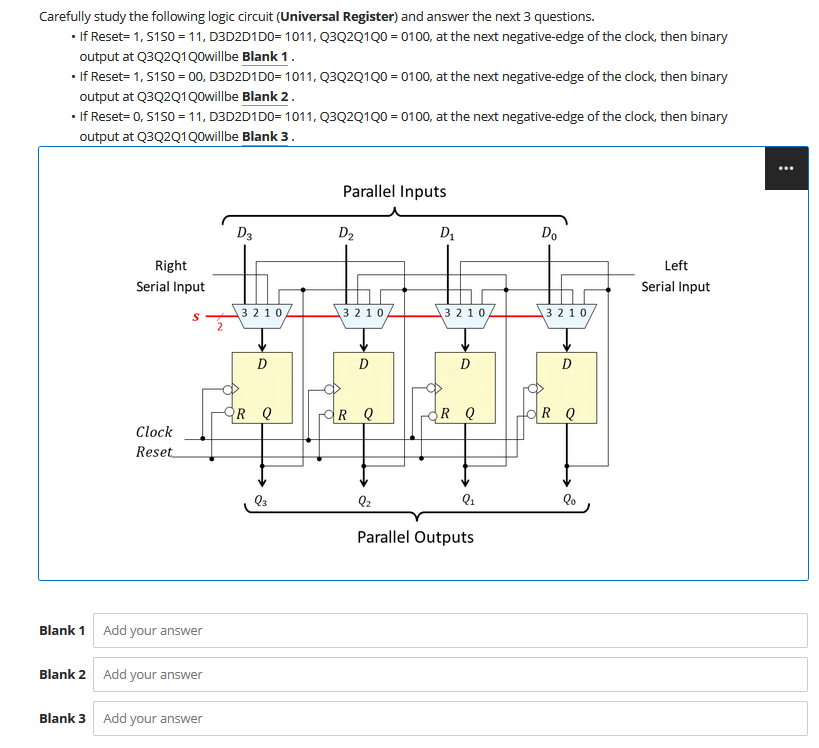

2.
