Question: please provide all steps and equations used 3. (25 Points) The shaft is made from a solid steel section AB and a tubular portion made

please provide all steps and equations used

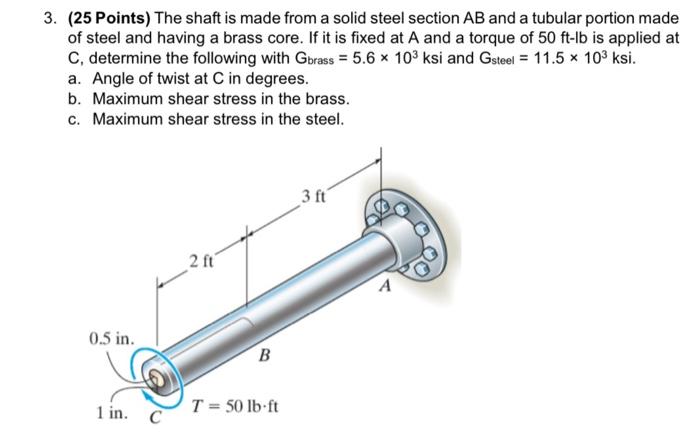

3. (25 Points) The shaft is made from a solid steel section AB and a tubular portion made of steel and having a brass core. If it is fixed at A and a torque of 50ftlb is applied at C, determine the following with Gbrass=5.6103ksi and Gsteel=11.5103ksi. a. Angle of twist at C in degrees. b. Maximum shear stress in the brass. c. Maximum shear stress in the steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
