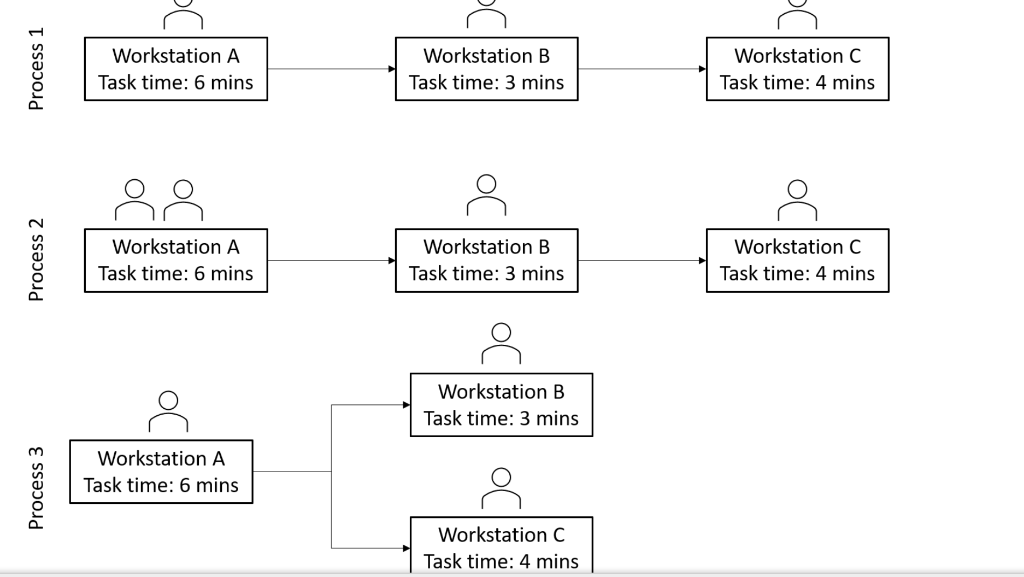

Please see the three processes above to answer the next TWO questions. Each of the three processes include 3 steps in the process. For all but one workstation, there is one worker (indicated by an icon of a person). For the second process, at workstation A, there are two workers. They are equally capable and it takes a single worker 6 minutes to complete step A in the process. With the two workers, the first worker works on the first unit that shows up their station, then the second worker works on the second unit, so they are working simultaneously. Given these processes, choose the correct statement below.

	a.	Flowtime of process 1> Flowtime of process 2> Flowtime of process 3
	b.	For process 2, Workstation C is the bottleneck
	c.	Capacity of Process 2> Capacity of Process 3 > Capacity of Process 1
	d.	None of the above
	e.	a. and b.
	f.	b. and c.

Process 1 Workstation A Task time: 6 mins Workstation B Task time: 3 mins Workstation C Task time: 4 mins Process 2 Workstation A Task time: 6 mins Workstation B Task time: 3 mins Workstation C Task time: 4 mins ol Workstation B Task time: 3 mins Process 3 Workstation A Task time: 6 mins Workstation C Task time: 4 mins
