Question: Please show all work 7 - 3 1 . Use the moment area method and determine the slope at C and the displacement at B

Please show all work

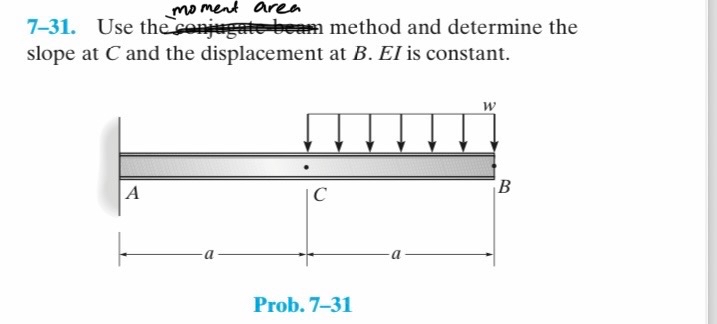

7-31. Use the moment area method and determine the slope at C and the displacement at B.EI is constant.
Please show all work 7 - 3 1 . Use the moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Please show all work, including; Ma ? Ay ? V at A , B , C . Shear diagram, M / EI diagram, tB / C , tC / A deflection curve and thetaC? Etc... 7 - 3 1 . Use the moment area method and determine the...

Q:

Please show all work, including; Ma ? Ay ? V at A , B , C . Shear diagram, M / EI diagram, deflection curve and thetaC? Etc... 7 - 3 1 . Use the moment area method and determine the slope at C and...
