Question: Please show all work, including; Ma ? Ay ? V at A , B , C . Shear diagram, M / EI diagram, tB /

Please show all work, including; Ma?Ay?V at A,B,C.Shear diagram, M/EI diagram, tB/C,tC/A deflection curve and thetaC? Etc...
7-31. Use the moment area method and determine the slope at C and the displacement at B. EI is constant. Structural Analysis 10 edition

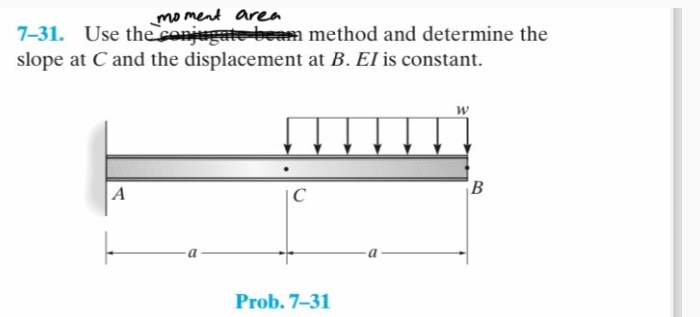

7-31. Use the moment area method and determine the slope at \( C \) and the displacement at \( B \).\( E I \) is constant.
Please show all work, including; Ma ? Ay ? V at A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
