Question: Please show all work! Design a rectangular beam section for the loads and values given. Show sketches of the beam cross section, including concrete covers

Please show all work!

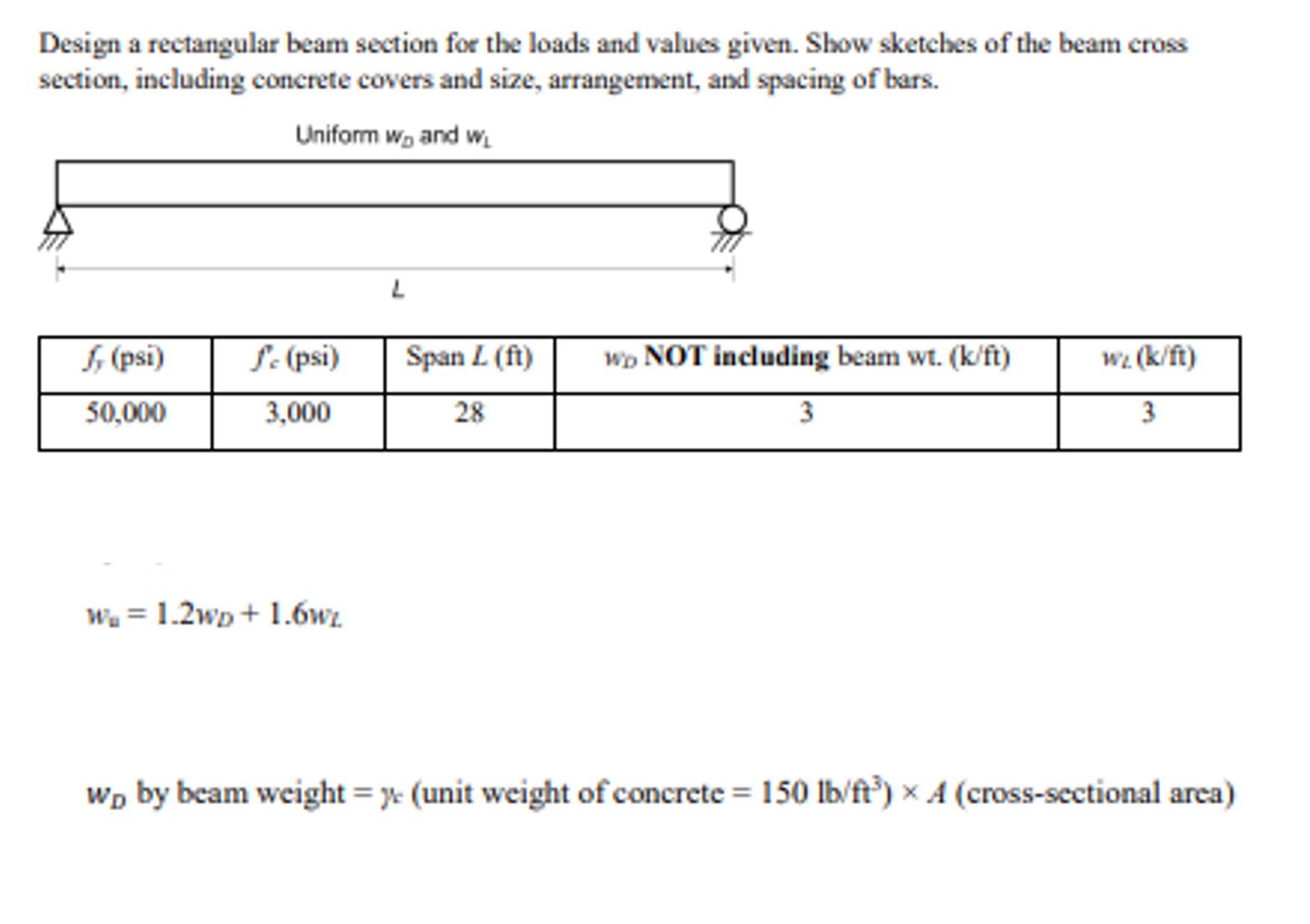

Design a rectangular beam section for the loads and values given. Show sketches of the beam cross
section, including concrete covers and size, arrangement, and spacing of bars.
Uniform wD and w1
wa=1.2wD+1.6wL
wDby beam weight =c( unit weight of concrete =150lbft3)A( cross-sectional area)
Please show all work! Design a rectangular beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
