Question: PLEASE SOLVE A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions
PLEASE SOLVE

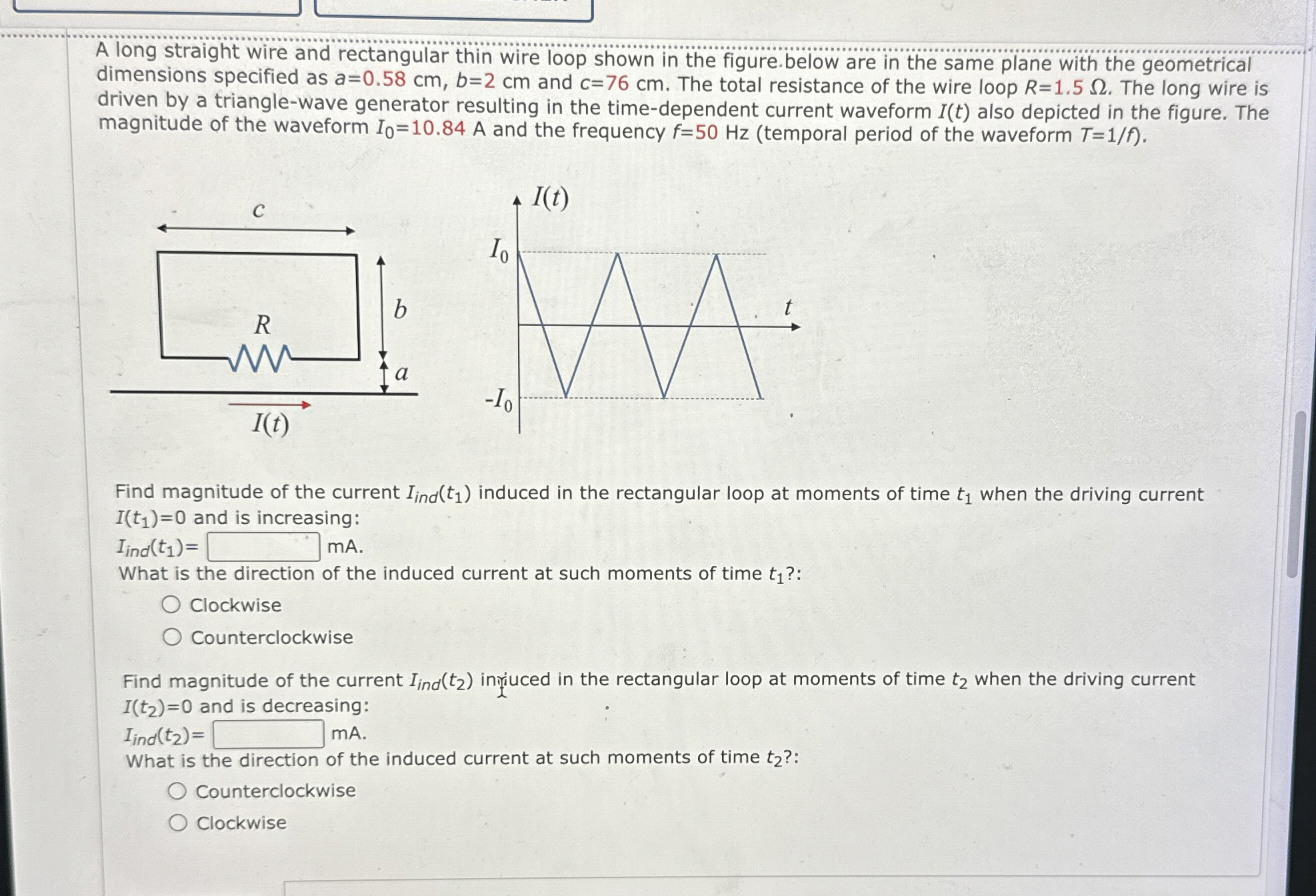

A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as and The total resistance of the wire loop The long wire is driven by a trianglewave generator resulting in the timedependent current waveform also depicted in the figure. The magnitude of the waveform A and the frequency temporal period of the waveform
Find magnitude of the current induced in the rectangular loop at moments of time when the driving current and is increasing:
mA
What is the direction of the induced current at such moments of time :
Clockwise
Counterclockwise
Find magnitude of the current inriuced in the rectangular loop at moments of time when the driving current and is decreasing:
mA
What is the direction of the induced current at such moments of time :
Counterclockwise
Clockwise
