Question: Please solve it graphically 2. The figure below shows two extreme positions of coupler AB of a fourbar linkage. It is known that the motion

Please solve it graphically Please solve it graphically 2. The figure below shows two extreme positions

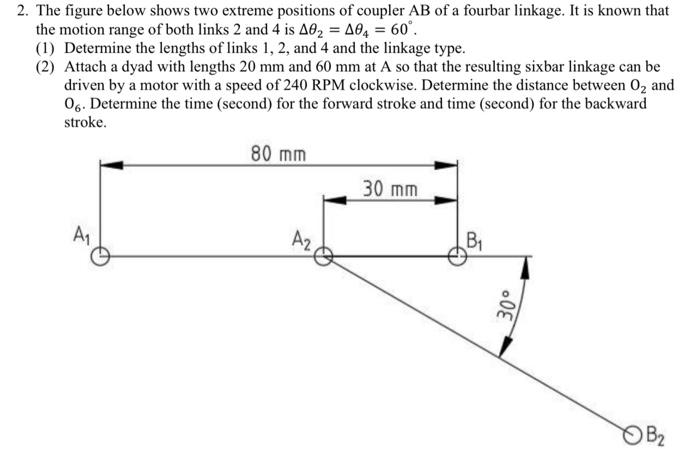

2. The figure below shows two extreme positions of coupler AB of a fourbar linkage. It is known that the motion range of both links 2 and 4 is 2=4=60. (1) Determine the lengths of links 1,2 , and 4 and the linkage type. (2) Attach a dyad with lengths 20mm and 60mm at A so that the resulting sixbar linkage can be driven by a motor with a speed of 240 RPM clockwise. Determine the distance between O2 and O6. Determine the time (second) for the forward stroke and time (second) for the backward stroke

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
