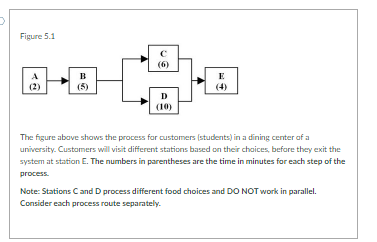

Please solve the below questions using figure $5\mathrm{.}1$

$1.)$Where would you expect student wait times to occur?

Group of answer choices

A only

E only

B$,$ C and D

D only

$2.)$Use the information in Figure $5\mathrm{.}1.$ What is the throughput time for the A$-$B$-$D$-$E process route?

Group of answer choices

$19$ minutes

$27$ minutes

$17$ minutes

$21$ minutes

$3.)$Use the information in Figure $5\mathrm{.}1.$ What is the throughput time for the A$-$B$-$C$-$E process route?

Group of answer choices

$17$ minutes

$19$ minutes

$27$ minutes

$21$ minutes

$4.)$Use the information in Figure $5\mathrm{.}1.$ If $60\%$ of the students are routed to C and $40\%$ are routed to D$,$ what is the average capacity per hour for the process?

Group of answer choices

$6\mathrm{.}5$ student per hour

$10$ students per hour

$8\mathrm{.}4$ students per hour

$8$ students per hour

$5.)$Use the information in Figure $5\mathrm{.}1.$ How many Students can be processed through the A$-$B$-$C$-$E routing during a $8-$hour session?

Group of answer choices

$40$

$28$

$100$

$80$

$6.)$Use the information in Figure $5\mathrm{.}1.$ What is the capacity for the A$-$B$-$C$-$E process route?

Group of answer choices

$10$ students per hour

$3\mathrm{.}5$ students per hour

$6$ student per hour

$2\mathrm{.}9$ students per hour

$7.)$Use the information in Figure $5\mathrm{.}1.$ What is the capacity for the A$-$B$-$D$-$E process route?

Group of answer choices

$2\mathrm{.}9$ students per hour

$10$ students per hour

$6$ student per hour

$3\mathrm{.}5$ students per hour
