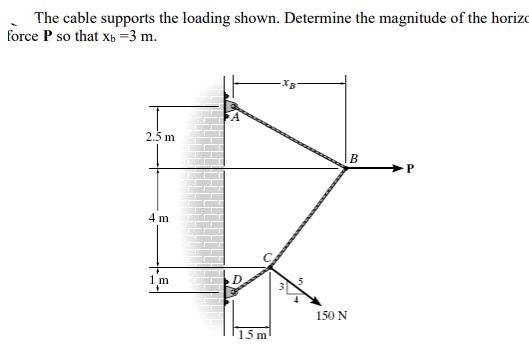

Question: [ Please solve this using FBD ] The cable supports the loading shown. Determine the magnitude of the horizc force P so that x _

[Please solve this using FBD] The cable supports the loading shown. Determine the magnitude of the horizc
force P so that x_(b)=3m.
[ Please solve this using FBD ] The cable

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
