Question: #### Please solve using MATLAB #### Q4: The Hazen Williams equations can be used to calculate the pressure drop, Pd (psi/ft of pipe) in pipes

#### Please solve using MATLAB ####

#### Please solve using MATLAB #### Q4: The Hazen Williams equations can

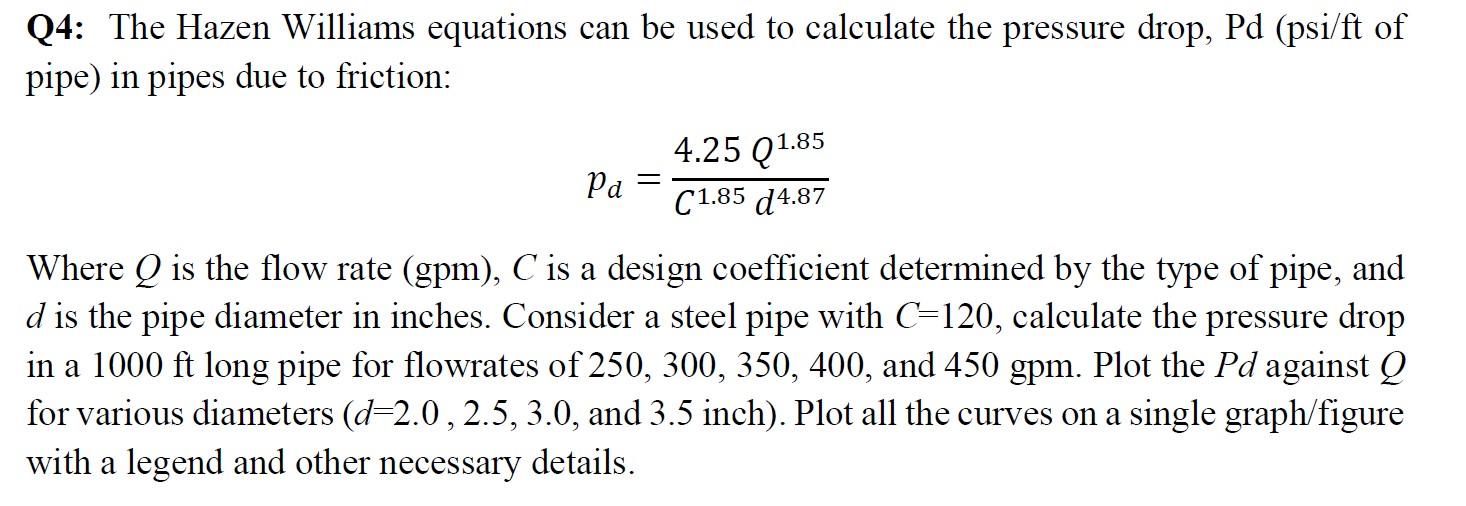

Q4: The Hazen Williams equations can be used to calculate the pressure drop, Pd (psi/ft of pipe) in pipes due to friction: pd=C1.85d4.874.25Q1.85 Where Q is the flow rate (gpm), C is a design coefficient determined by the type of pipe, and d is the pipe diameter in inches. Consider a steel pipe with C=120, calculate the pressure drop in a 1000ft long pipe for flowrates of 250,300,350,400, and 450gpm. Plot the Pd against Q for various diameters ( d=2.0,2.5,3.0, and 3.5 inch). Plot all the curves on a single graph/figure with a legend and other necessary details

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

#### Please solve using MATLAB #### Q4: The Hazen Williams equations can be used to calculate the pressure drop, Pd (psi/ft of pipe) in pipes due to friction: pd=C1.85d4.874.25Q1.85 Where Q is the...

Solve using matlab please. Q4: The Hazen Williams equations can be used to calculate the pressure drop, Pd(psi/ft of pipe) in pipes due to friction: pd=C1.85d4.874.25Q1.85 Where Q is the flow rate...
