Please solve with method of sections and method of joints, completed with necessary free body diagrams and step by step explanation.

Problem

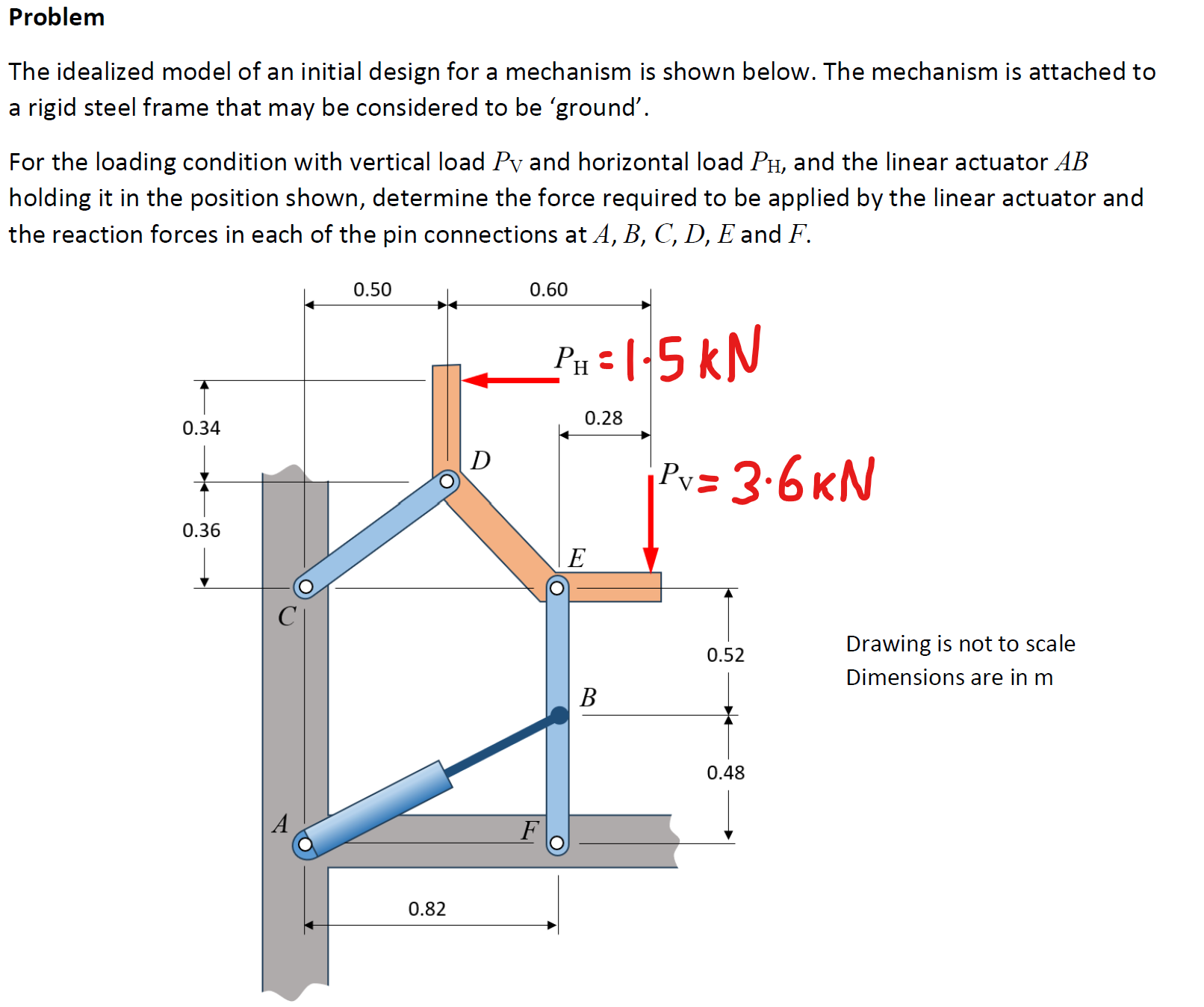

The idealized model of an initial design for a mechanism is shown below. The mechanism is attached to

a rigid steel frame that may be considered to be 'ground'.

For the loading condition with vertical load $P_V=3\mathrm{.}6$kN and horizontal load $P_H=1\mathrm{.}5$kN$,$ and the linear actuator $AB$

holding it in the position shown, determine the force required to be applied by the linear actuator and

the reaction forces in each of the pin connections at $A,B,C,D,E$ and $F.$
