Question: please sovle this problem as soon as possible Water flows in the piping system as shown in the figure below. Any inlet flow rate is

please sovle this problem as soon as possible

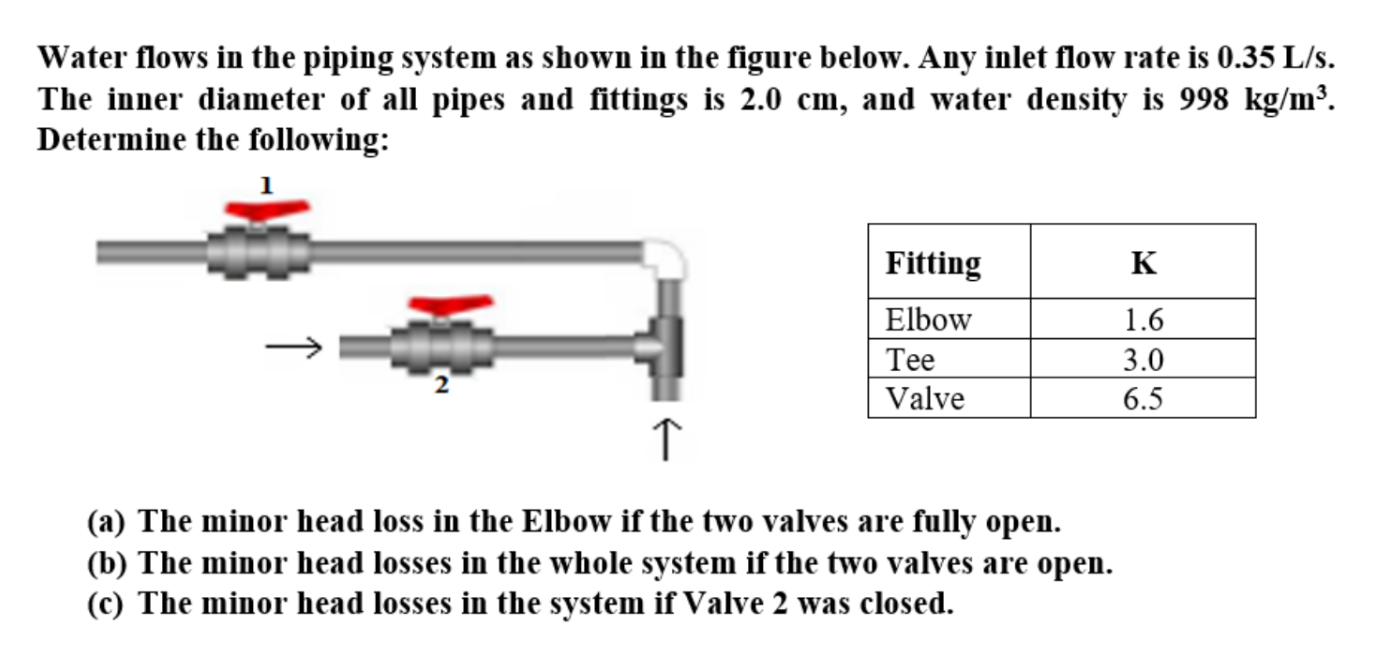

Water flows in the piping system as shown in the figure below. Any inlet flow rate is 0.35L/s. The inner diameter of all pipes and fittings is 2.0cm, and water density is 998kg/m3. Determine the following: (a) The minor head loss in the Elbow if the two valves are fully open. (b) The minor head losses in the whole system if the two valves are open. (c) The minor head losses in the system if Valve 2 was closed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
