Question: Please use tinkercad to simulate the circuit. Microcontroller arduino. Program Tinkercard, Microcontroller Arduino 1) Interface a motor and switches to the microcontroller. 2) Program the

 Please use tinkercad to simulate the circuit. Microcontroller arduino. Program Tinkercard,

Please use tinkercad to simulate the circuit. Microcontroller arduino.

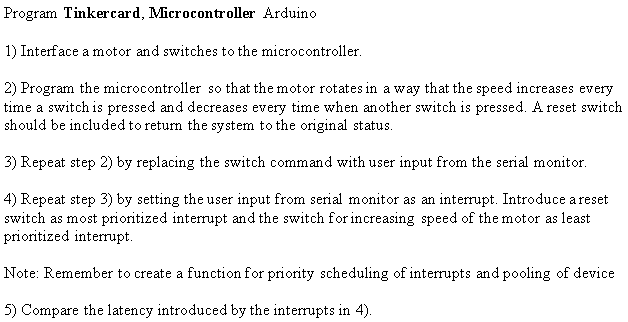

Program Tinkercard, Microcontroller Arduino 1) Interface a motor and switches to the microcontroller. 2) Program the microcontroller so that the motor rotates in a way that the speed increases every time a switch is pressed and decreases every time when another switch is pressed. A reset switch should be included to return the system to the original status. 3) Repeat step 2) by replacing the switch command with user input from the serial monitor. 4) Repeat step 3) by setting the user input from serial monitor as an interrupt. Introduce a reset switch as most prioritized interrupt and the switch for increasing speed of the motor as least prioritized interrupt. Note: Remember to create a function for priority scheduling of interrupts and pooling of device 5) Compare the latency introduced by the interrupts in 4)
