Question: Please use white paper if possible. Also, put your answer in a whole number. 1) For the oscilloscope below, calculate the frequency in Hz of

Please use white paper if possible.
Also, put your answer in a whole number.

number.1) For the oscilloscope below, calculate the frequency in Hz of the

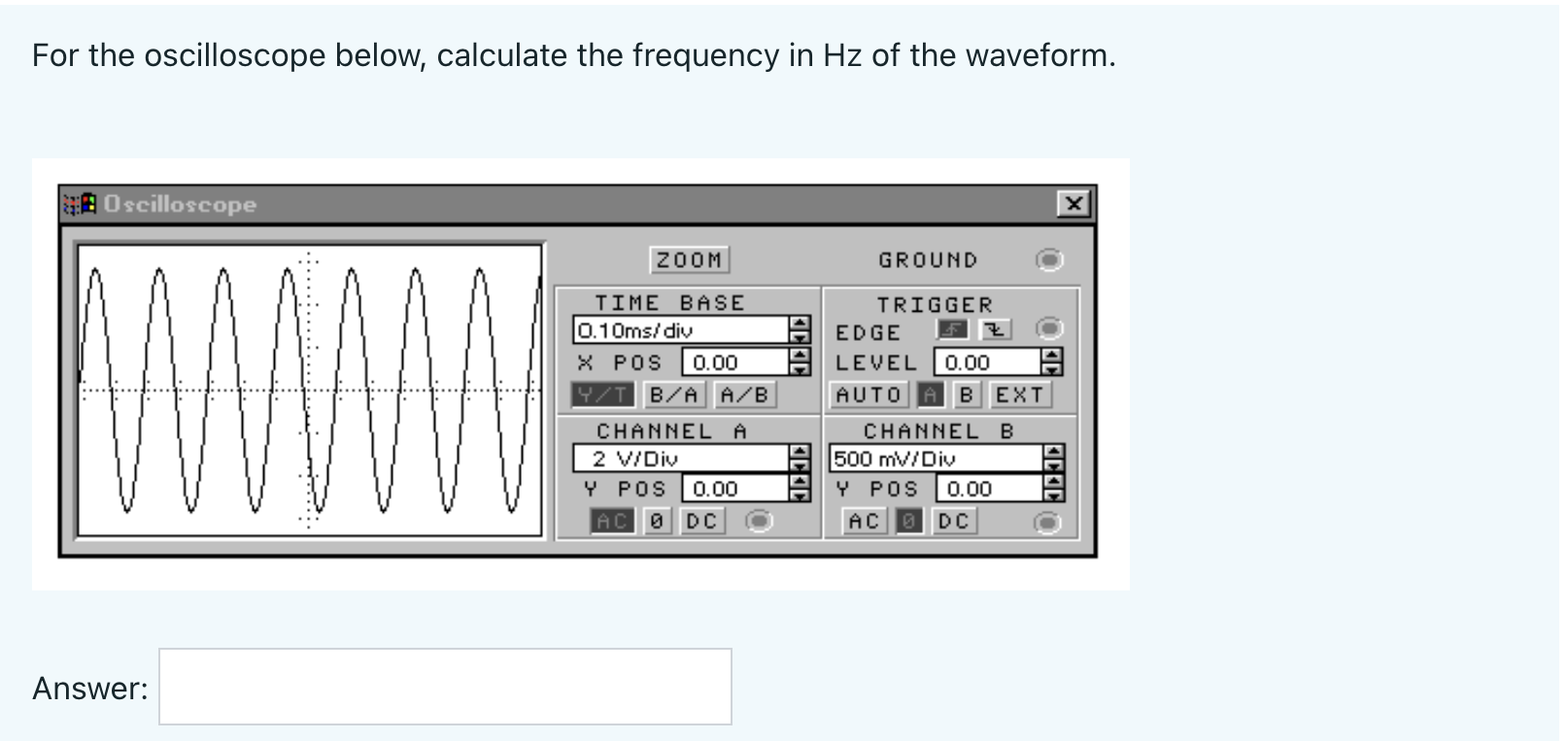

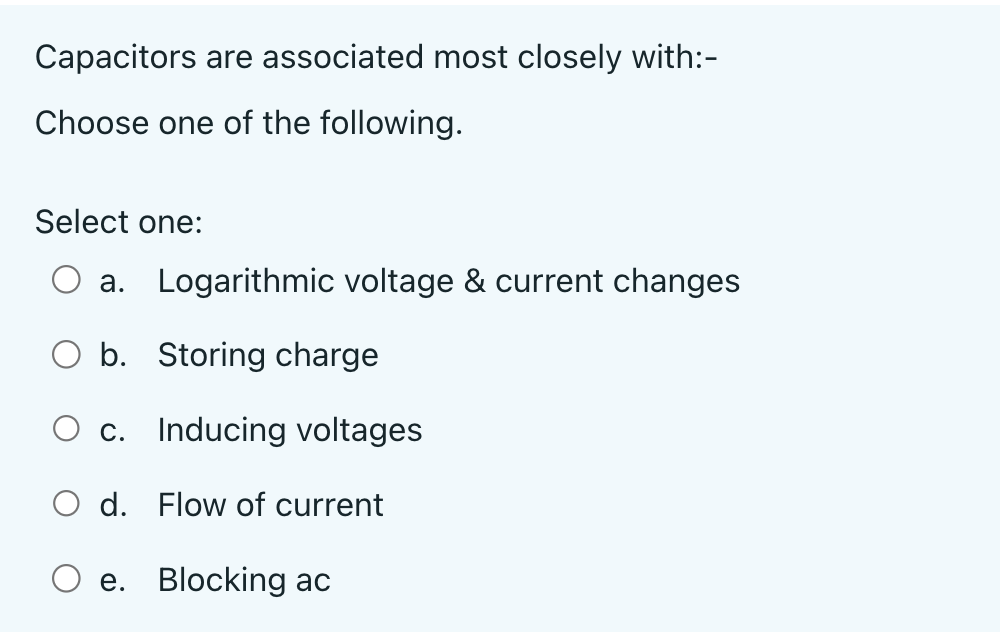

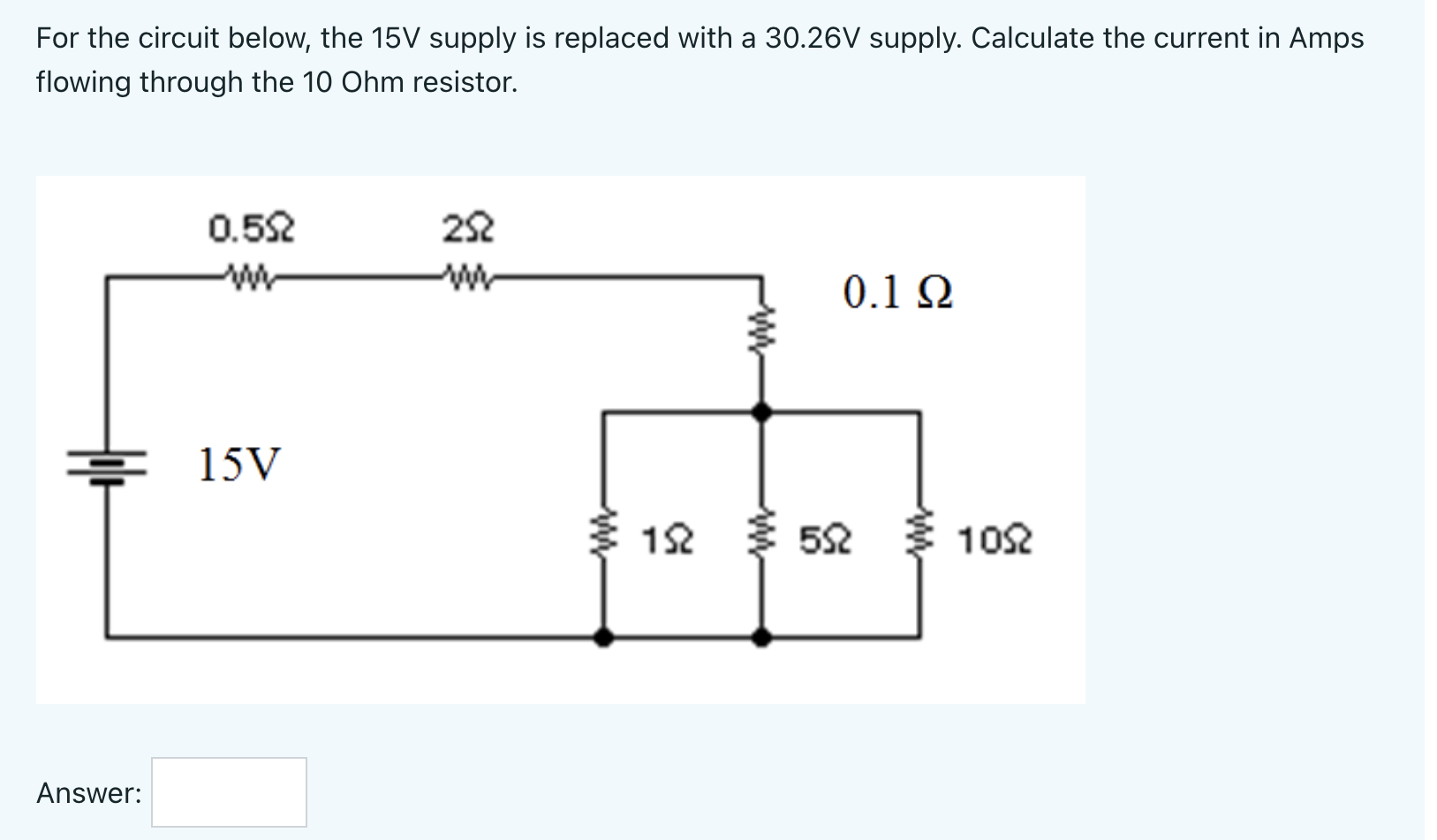

For the oscilloscope below, calculate the frequency in Hz of the waveform. $: Oscilloscope X ZOOM GROUND TIME BASE TRIGGER 0.10ms/ div EDGE X POS 0.00 LEVEL 0.00 B/A A/B AUTO A B EXT CHANNEL A CHANNEL B 2 V/Div 500 mV/Div Y POS 0.00 Y POS 0.00 AC DC AC G DC Answer:Capacitors are associated most closely with:- Choose one of the following. Select one: Q a. Logarithmic voltage & current changes 0 b. Storing charge 0 c. Inducing voltages 0 d. Flow of current 0 e. Blocking ac For the circuit below, the 15V supply is replaced with a 30.26V supply. Calculate the current in Amps flowing through the 10 Ohm resistor. 0.59 29 0.1 9 15V 19 552 10$? Answer: An oscilloscope displays a 34V peak to peak sine wave. Calculate the rms value. Answer:
