Please using matrix method!!!

Homework $5(100$ points$)$

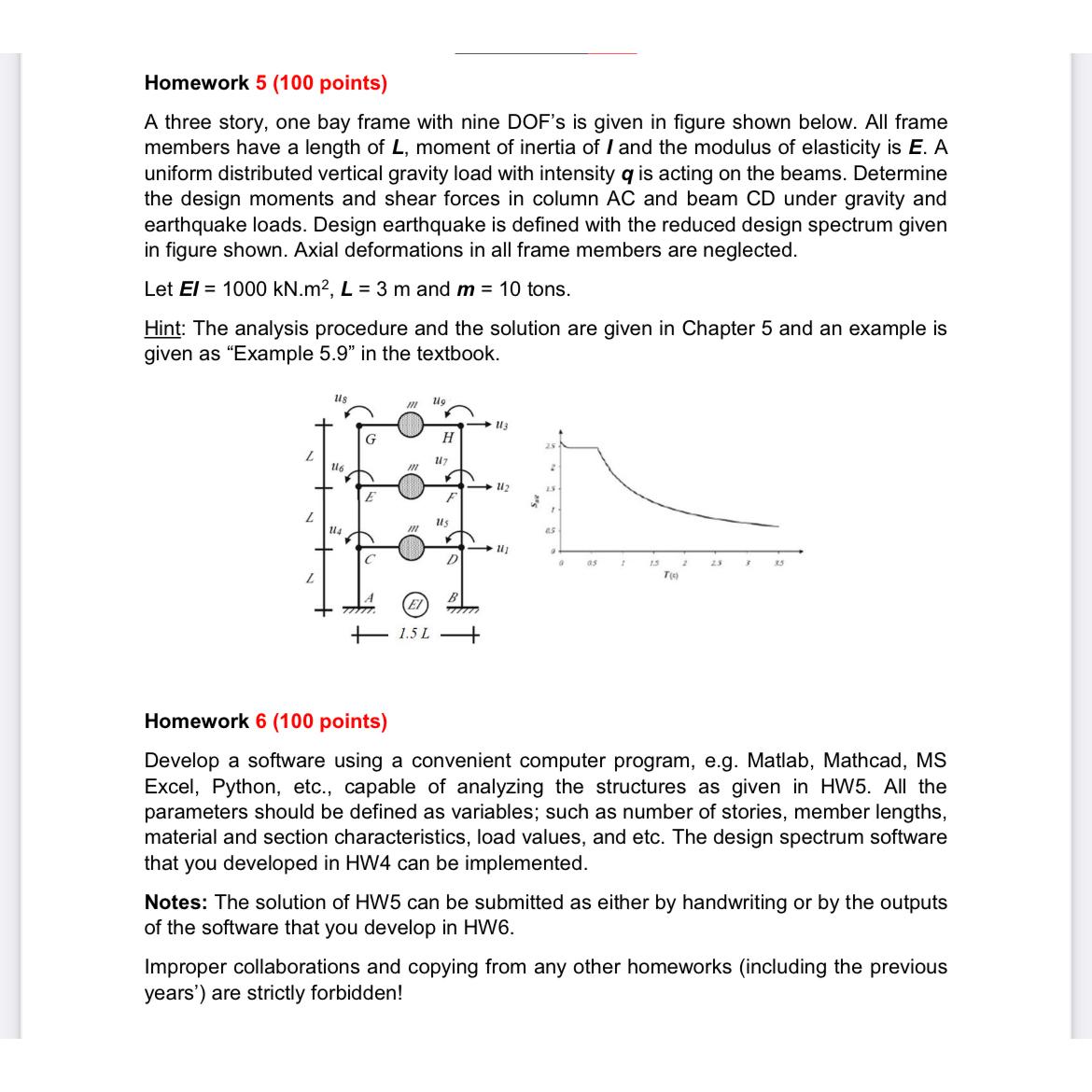

A three story, one bay frame with nine DOF's is given in figure shown below. All frame members have a length of $L,$ moment of inertia of I and the modulus of elasticity is $E.$ A uniform distributed vertical gravity load with intensity $q$ is acting on the beams. Determine the design moments and shear forces in column AC and beam CD under gravity and earthquake loads. Design earthquake is defined with the reduced design spectrum given in figure shown. Axial deformations in all frame members are neglected.

Let $EI=1000kN*m^2,L=3m$ and $m=10$ tons.

Hint: The analysis procedure and the solution are given in Chapter $5$ and an example is given as "Example $5\mathrm{.}9"$ in the textbook.

Homework $6(100$ points$)$

Develop a software using a convenient computer program, e$.$g$.$ Matlab, Mathcad, MS Excel, Python, etc., capable of analyzing the structures as given in HW$5.$ All the parameters should be defined as variables; such as number of stories, member lengths, material and section characteristics, load values, and etc. The design spectrum software that you developed in HW$4$ can be implemented.

Notes: The solution of HW$5$ can be submitted as either by handwriting or by the outputs of the software that you develop in HW$6.$

Improper collaborations and copying from any other homeworks $($including the previous years'$)$ are strictly forbidden!
