Please write your numeric answers on the dashed lines. Your numeric answers; should be in engineering notation with prefixes (M, k, m, etc.). should be rounded to three significant digits and should include the correct units,

Q1) Write the value of the period (T), of the sinusoidal waves whose frequencies are; (5 points each) f = 200 Hz, T = f = 50 kHz, T =

Q2) Write the value of the frequency (f), of the sinusoidal waves whose periods are; (5 points each) T = 20 ms f = T = 400 s f =

Q3) If the voltage Vrms value is 5 V find the following voltages; (5 points each) Vp = Vp-p =

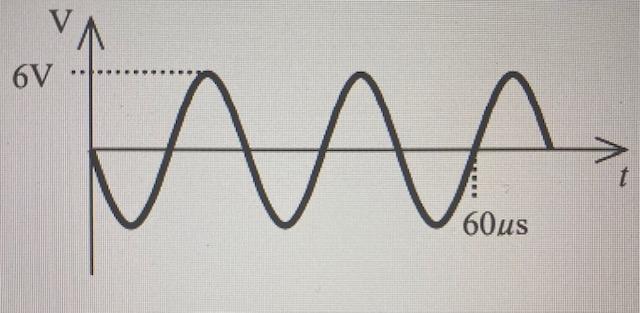

Given the wave in the figure write the following values. (4 points each)

A- Vp-p =

B- Vrms =

C- Vp =

D- T =

E- f =

Q5) Given V1 = 5 + j3.5 and V2 = 4.5 j2, calculate the following; (5 points each)

V1 + V2 =

V1 V2 =

V2 V1 =

Q6) Given V1 = 6 angle35degrees and V2 = 4

V1 x V2 =

V1 / V2 =

V2 / V1 =

Q7) Convert the coordinates of the phasor V = 5 j3 from rectangular to polar; (5 points each)

Vx =

Oy=

Q8) Convert the coordinates of the phasor V = 9 angle 60degrees from polar to rectangular; (5 points each);

Vx =

Vy =

6V t 60us
