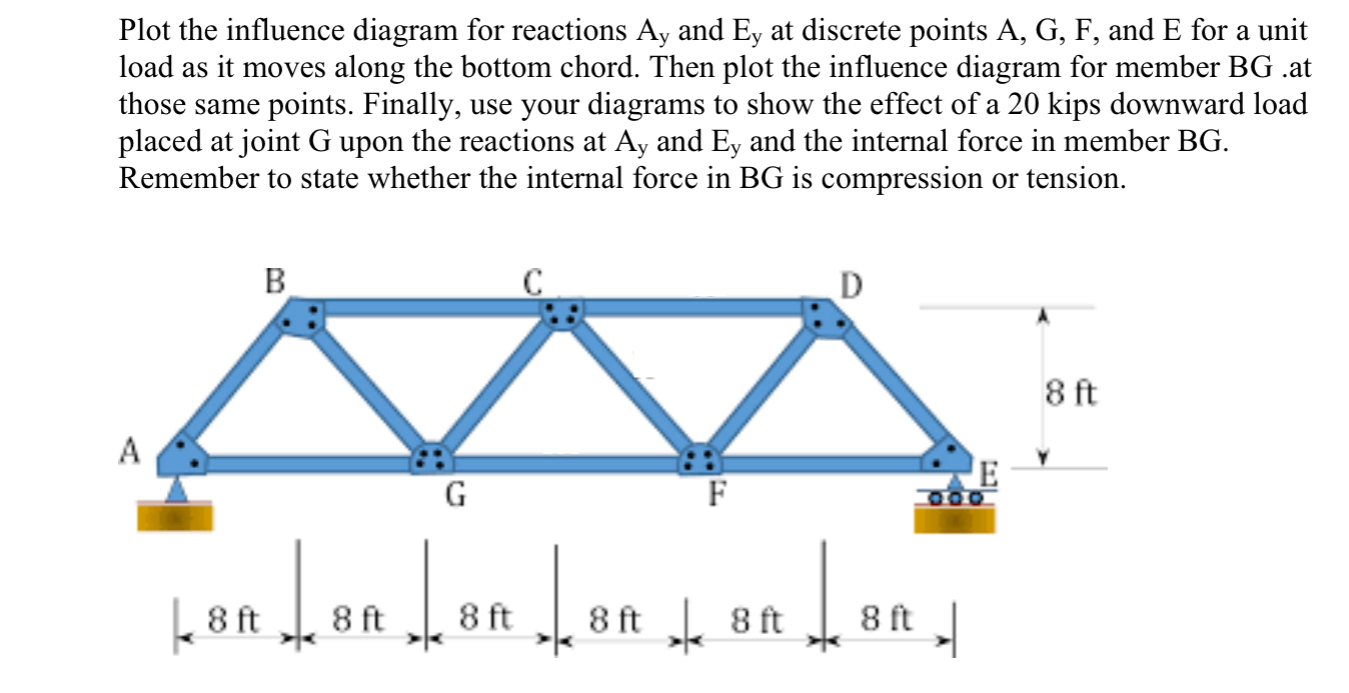

Question: Plot the influence diagram for reactions A y and E y at discrete points A , G , F , and E for a unit

Plot the influence diagram for reactions Ay and Ey at discrete points A,G,F, and E for a unit
load as it moves along the bottom chord. Then plot the influence diagram for member BG .at
those same points. Finally, use your diagrams to show the effect of a 20 kips downward load
placed at joint G upon the reactions at Ay and Ey and the internal force in member BG .
Remember to state whether the internal force in BG is compression or tension.
Plot the influence diagram for reactions A y and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
