PLS HELP ASAP
Required Information
Problem 11.035- Selection of a bearing for a shaft design

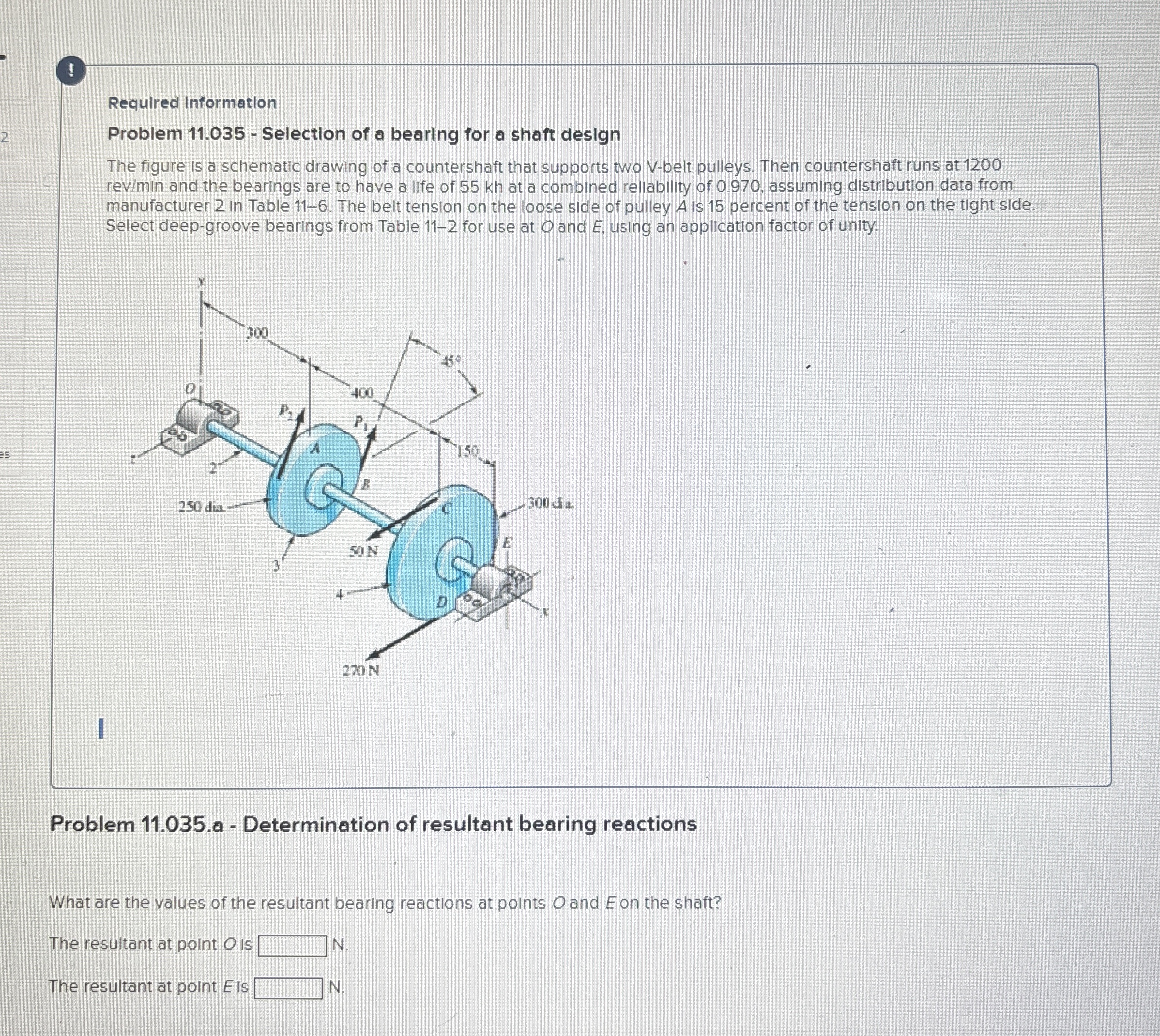

The figure is a schematic drawing of a countershaft that supports two V-belt pulleys. Then countershaft runs at 1200 revimin and the bearings are to have a life of 55 kh at a combined rellability of 0.970, assuming distribution data from manufacturer 2 in Table 11-6. The belt tension on the loose side of pulley A is 15 percent of the tension on the tight side. Select deep-groove bearings from Table 11-2 for use at O and E, using an application factor of unity.
Problem 11.035.a - Determination of resultant bearing reactions
What are the values of the resultant bearing reactions at points O and E on the shaft?
The resultant at point O is N .
The resultant at point E is N.
