Question: pls help, thank you. Assignment 4 Part 1 1. Create a Network Diagram for the following tasks: Task Predecessor A B A A D B

pls help, thank you. Assignment 4 Part 1 1. pls help, thank you.

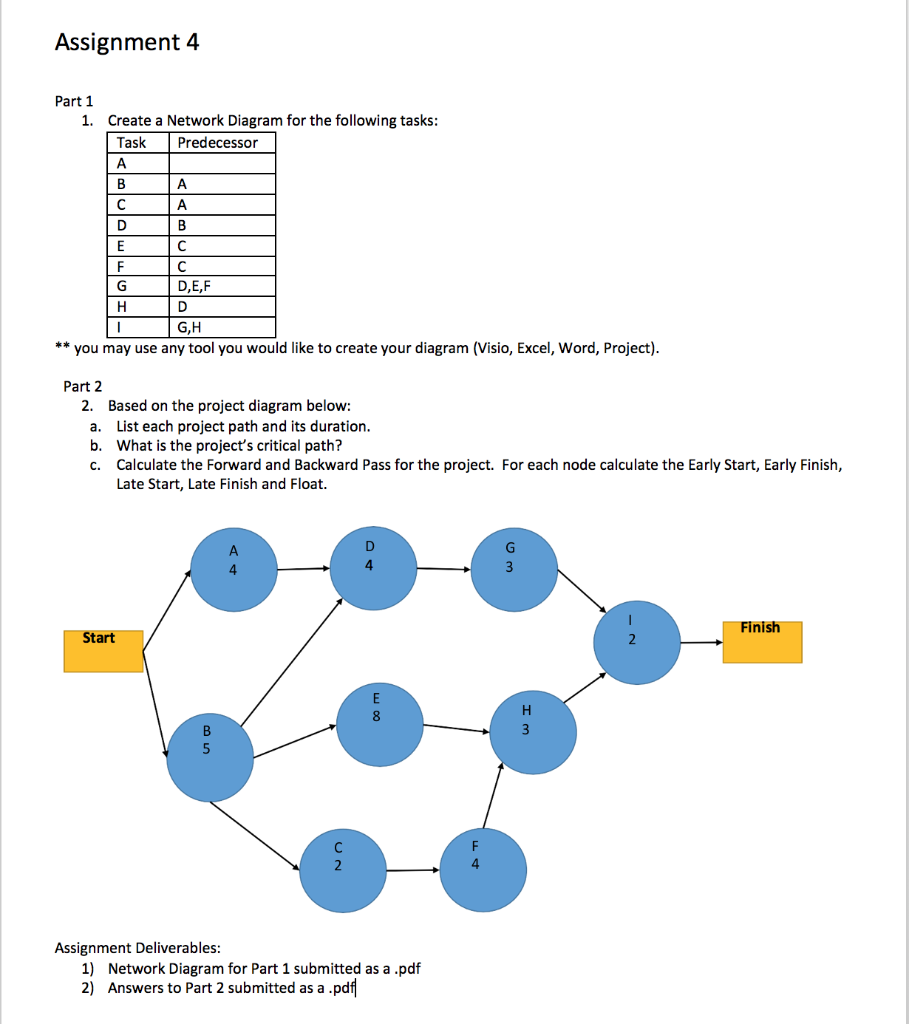

Assignment 4 Part 1 1. Create a Network Diagram for the following tasks: Task Predecessor A B A A D B E F D,E,F H D GH ** you may use any tool you would like to create your diagram (Visio, Excel, Word, Project). Part 2 2. Based on the project diagram below: a. List each project path and its duration. b. What is the project's critical path? C. Calculate the Forward and Backward Pass for the project. For each node calculate the Early Start, Early Finish, Late Start, Late Finish and Float. Finish Start Assignment Deliverables: 1) Network Diagram for Part 1 submitted as a .pdf 2) Answers to Part 2 submitted as a .pdf
