Question: Plz solve 8 - 2 8 - 1 . Use the method of virtual work and determine the vertical displacement of joint B of the

Plz solve 8-2

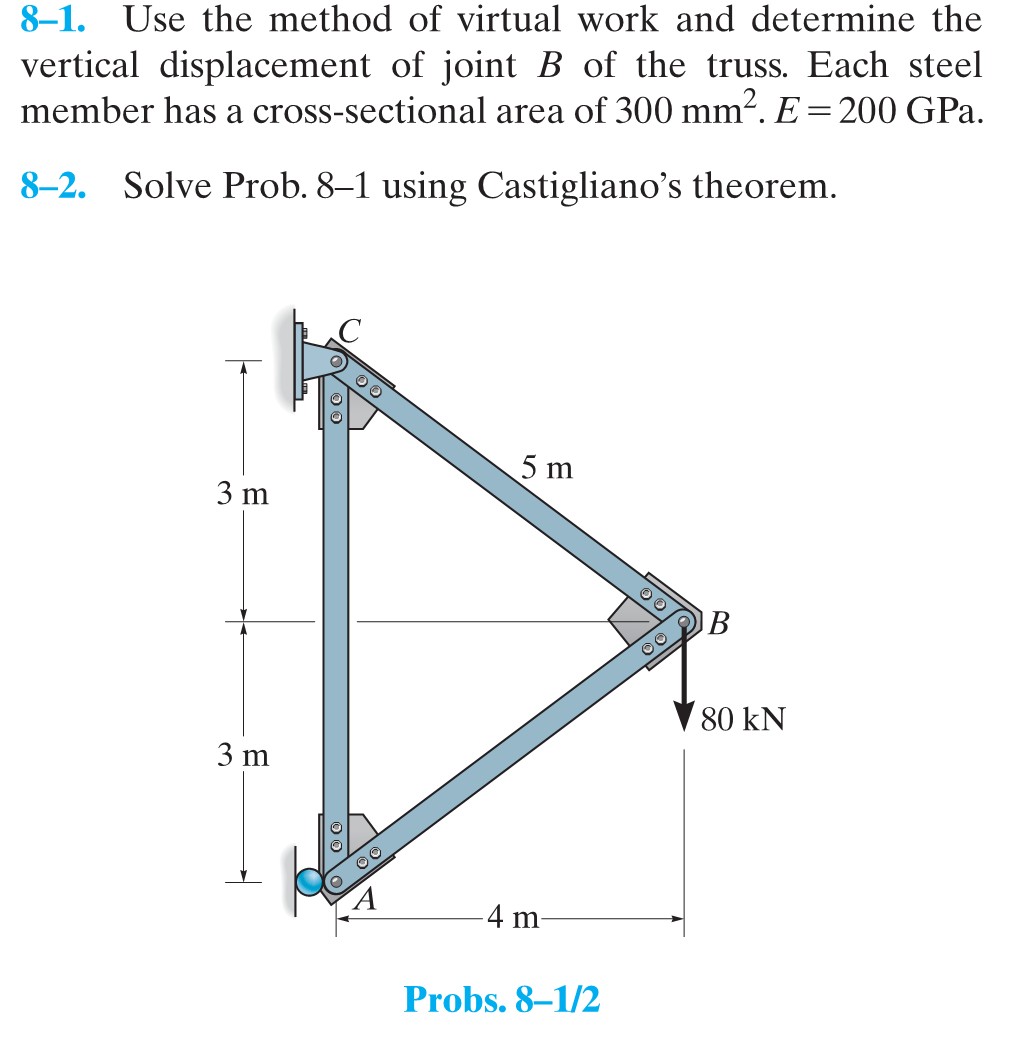

8-1. Use the method of virtual work and determine the
vertical displacement of joint B of the truss. Each steel
member has a cross-sectional area of 300mm2.E=200GPa.
8-2. Solve Prob. 8-1 using Castigliano's theorem.
Plz solve 8 - 2 8 - 1 . Use the method of virtual

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
