Question: plz solve 8 - 6 8 - 5 . Determine the vertical displacement of point A . Assume the members are pin connected at their

plz solve 8-6

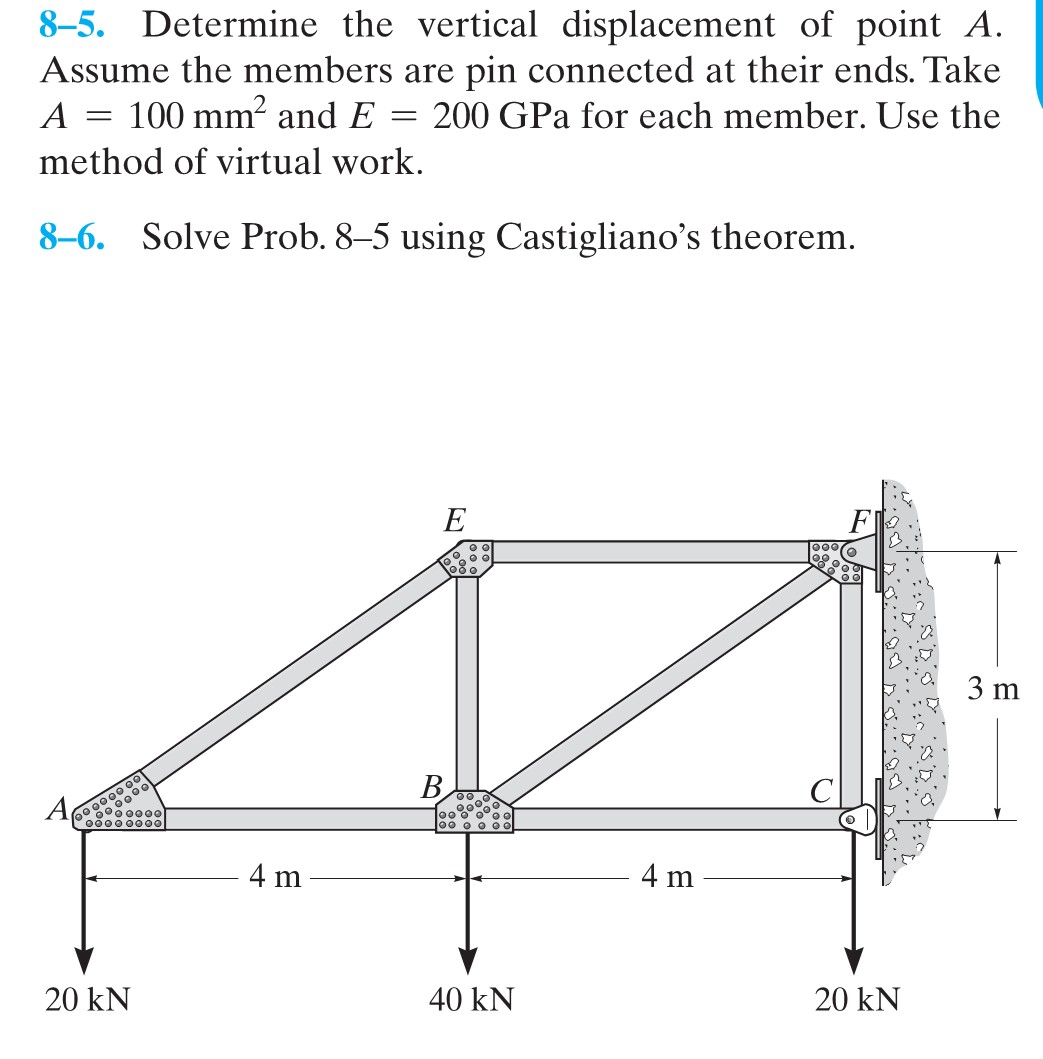

8-5. Determine the vertical displacement of point A.
Assume the members are pin connected at their ends. Take
A=100mm2 and E=200GPa for each member. Use the
method of virtual work.
8-6. Solve Prob. 8-5 using Castigliano's theorem.
plz solve 8 - 6 8 - 5 . Determine the vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
