Question: Point values shown in ( ) . 2 3 . ( 6 ) Determine the stress at ( a ) point A , ( b

Point values shown in ().

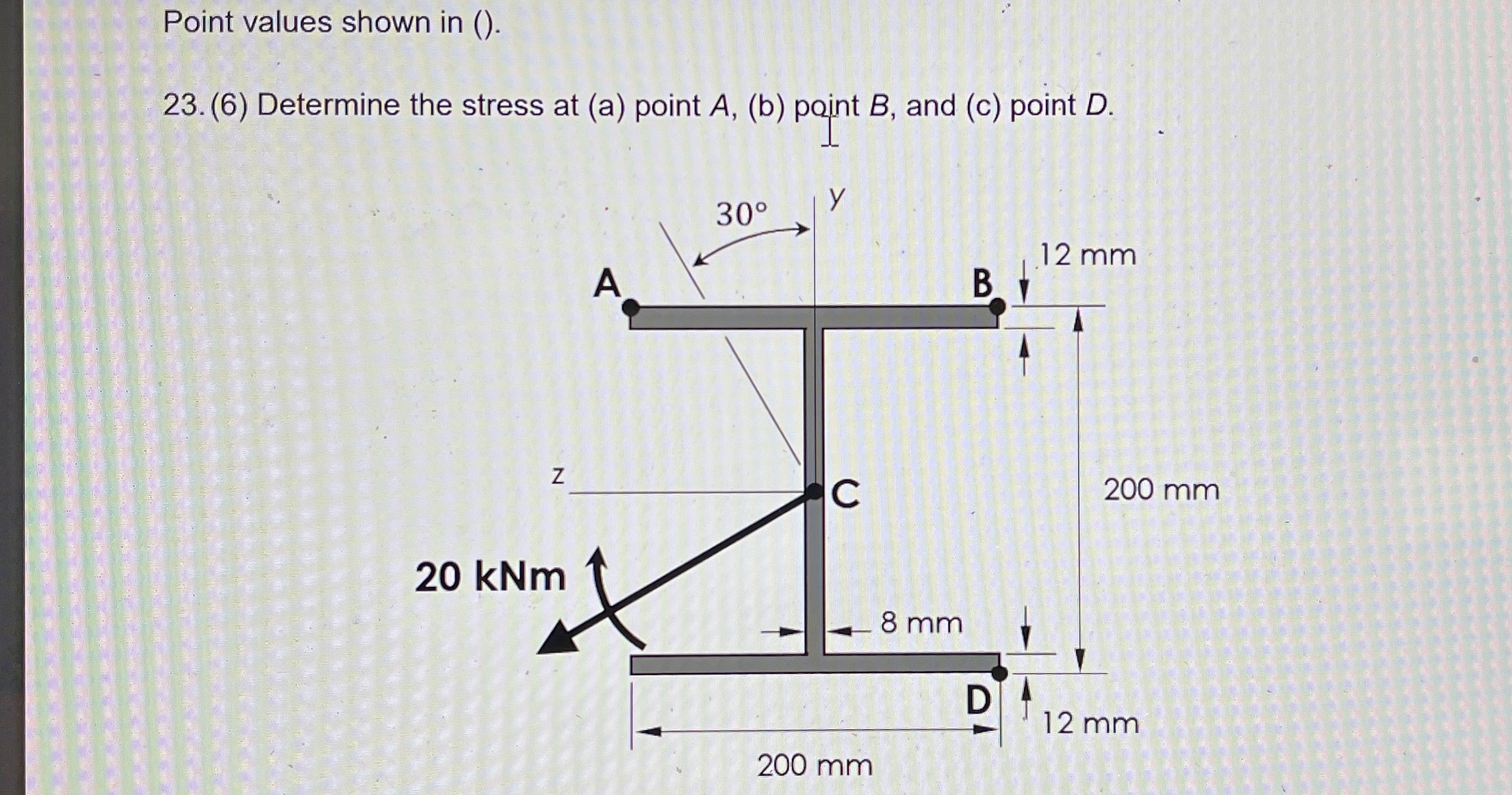

23.(6) Determine the stress at (a) point A,(b) point B, and (c) point D.
20
Point values shown in ( ) . 2 3 . ( 6 ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
