Question: Pr . 1 6 . 1 6 . ( in SI units ) 1 6 - 1 6 . Determine the react ions at the

Pr.16.16.(in SI units)

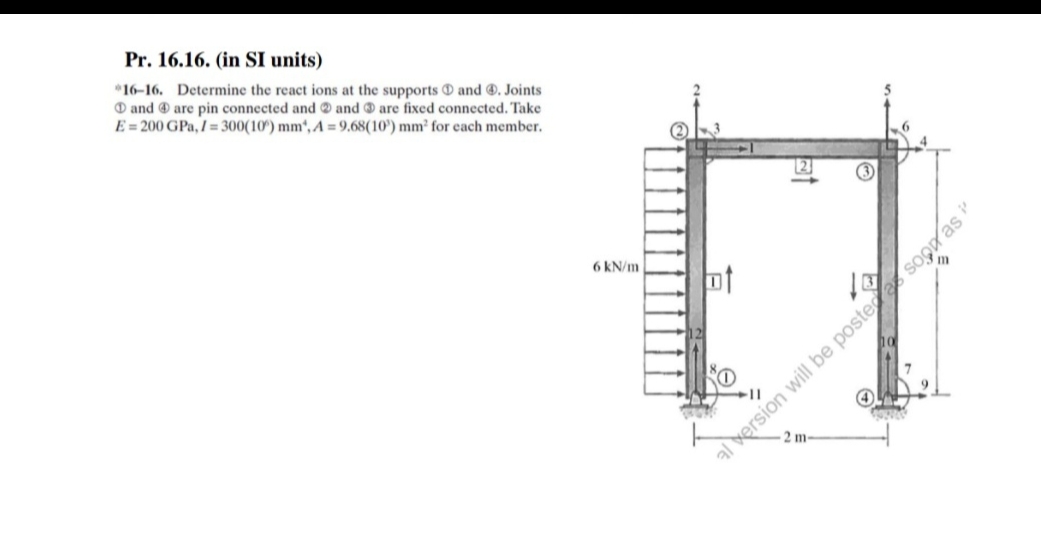

16-16. Determine the react ions at the supports and o+. Joints and are pin connected and and are fixed connected. Take E=200GPa,I=300(10)mm4,A=9.68(10)mm2 for each member.
solve by stiffness matrix methid please use matrix to solve this qusstion
Pr . 1 6 . 1 6 . ( in SI units ) 1 6 - 1 6 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
