Question: Practice exercise 3 If the clamping force on the pipe is 9 0 0 N , determine the horizontal force that must be applied perpendicular

Practice exercise 3

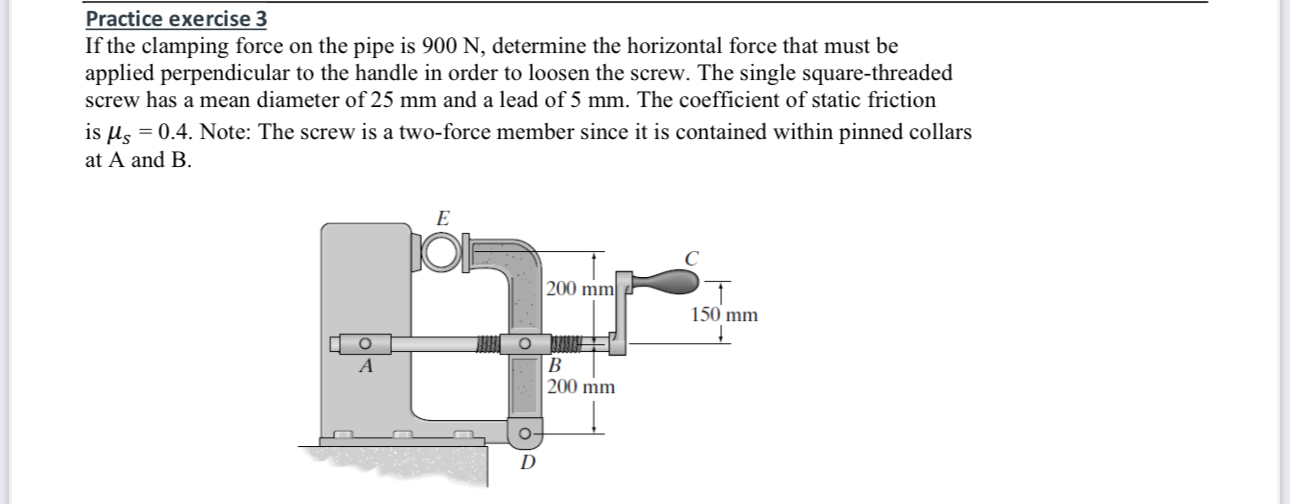

If the clamping force on the pipe is 900 N , determine the horizontal force that must be applied perpendicular to the handle in order to loosen the screw. The single square-threaded screw has a mean diameter of 25 mm and a lead of 5 mm . The coefficient of static friction is s=0.4. Note: The screw is a two-force member since it is contained within pinned collars at A and B .
Practice exercise 3 If the clamping force on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

If the clamping force on the pipe is 900 N, determine the horizontal force that must be applied perpendicular to the handle in order to loosen the screw. The single square-threaded screw has a mean...
