Question: Practice Test No . 2 In the position shown, bar A B has a clockwise angular velocity of 4 r a d s . Find

Practice Test No.2

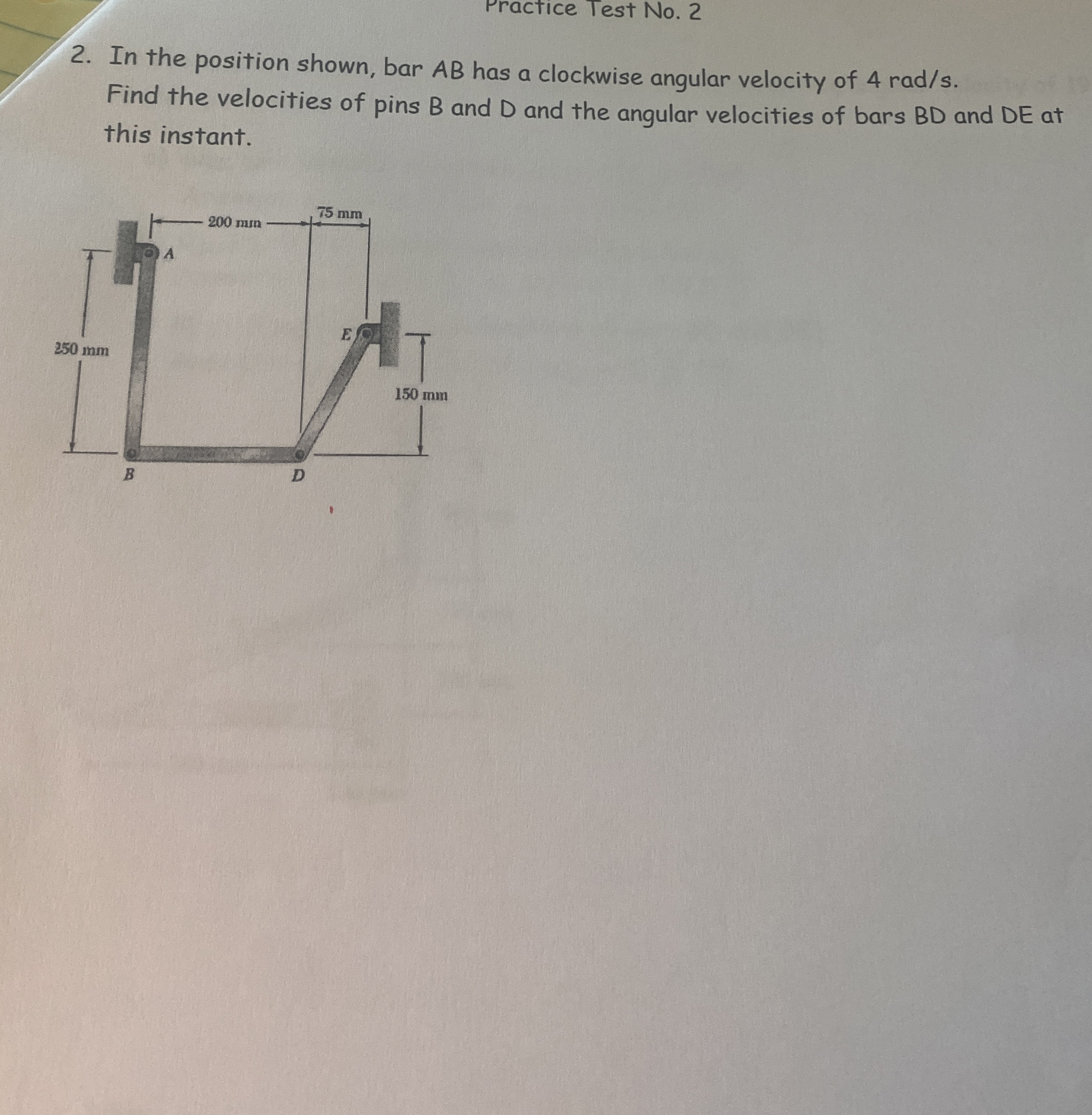

In the position shown, bar AB has a clockwise angular velocity of 4rads.
Find the velocities of pins B and D and the angular velocities of bars BD and DE at
this instant.
Practice Test No . 2 In the position shown, bar A

Step by Step Solution

There are 3 Steps involved in it
