Question: Precedence Diagram Method (PDM) Precedence Diagram Method (PDM) Activity on Node (AON) Draw the network and calculate the following. 1. Forward Path 2. Backward Path

Precedence Diagram Method (PDM)

Precedence Diagram Method (PDM) Precedence

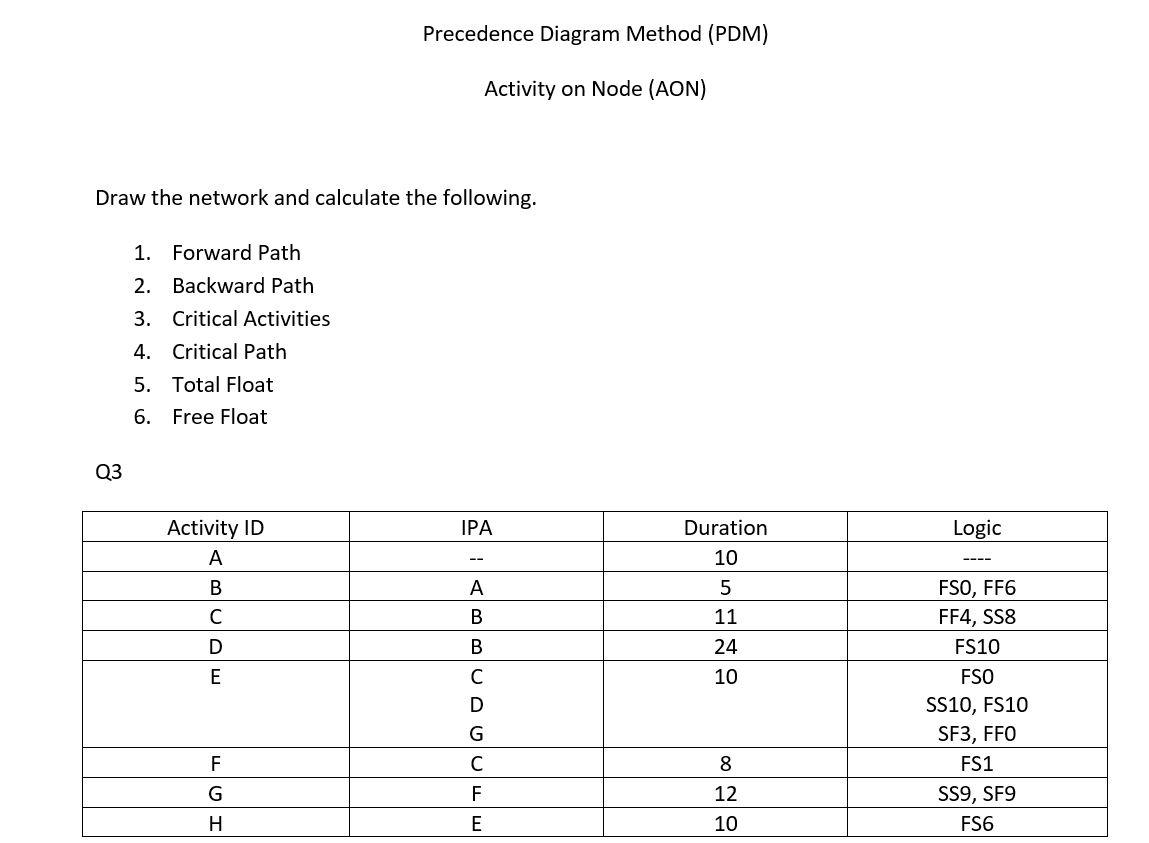

Precedence Diagram Method (PDM) Activity on Node (AON) Draw the network and calculate the following. 1. Forward Path 2. Backward Path 3. Critical Activities 4. Critical Path 5. Total Float 6. Free Float Q3 IPA Logic Activity ID A Duration 10 5 B A C B 11 D B 24 E C 10 D FSO, FF6 FF4, SS8 FS10 FSO SS10, FS10 SF3, FFO FS1 SS9, SF9 FS6 G C F 8 G F 12 H E 10
