Question: Principal stresses occur on * This figure show the * planes of minimum shearing stress O OBIA equal shearing stress zero shearing stress O

Principal stresses occur on * This figure show the * planes of

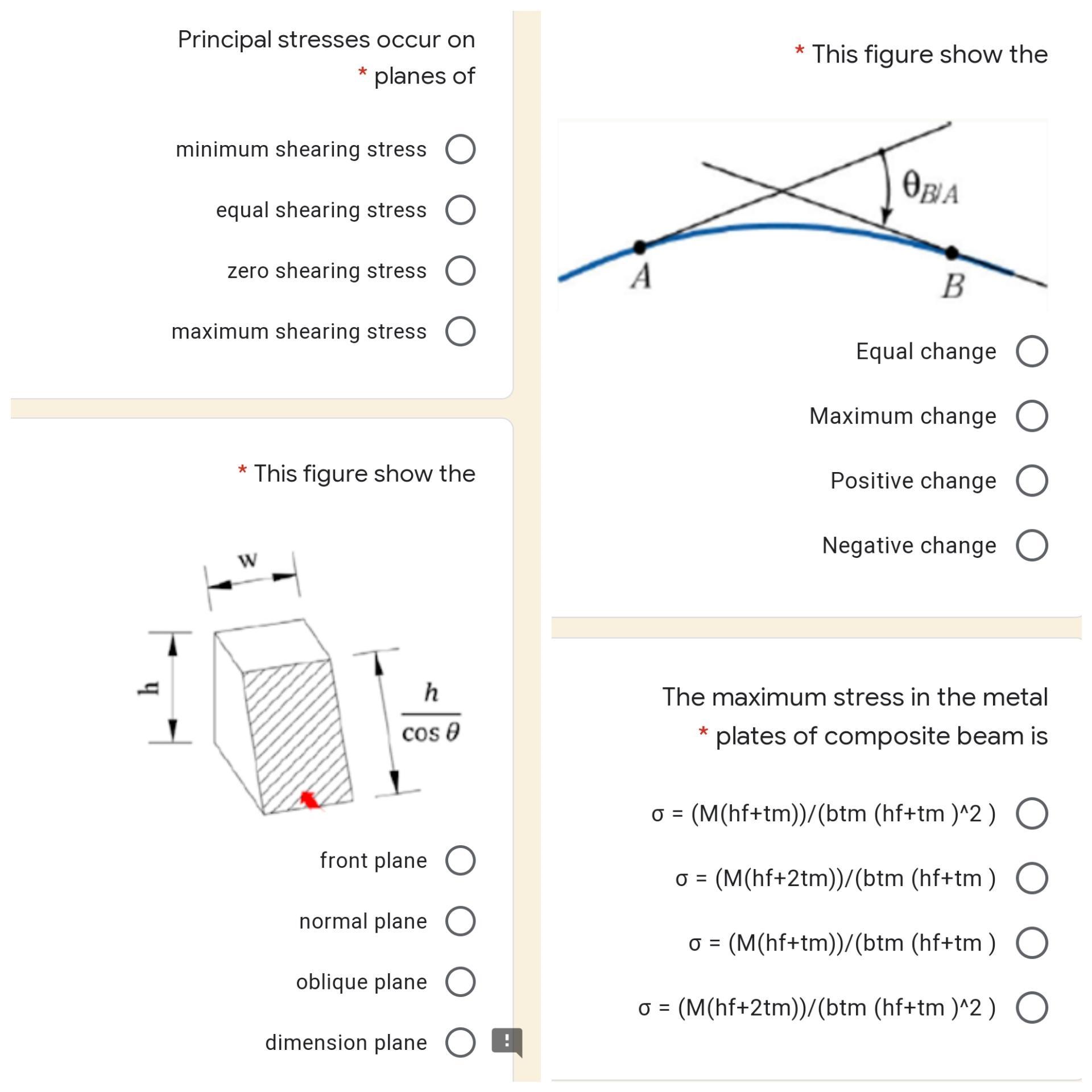

Principal stresses occur on * This figure show the * planes of minimum shearing stress O OBIA equal shearing stress zero shearing stress O A maximum shearing stress O Equal change O Maximum change O * This figure show the Positive change Negative change O h The maximum stress in the metal cos e plates of composite beam is o= (M(hf+tm))/(btm (hf+tm )^2 ) O front plane O o = (M(hf+2tm))/(btm (hf+tm ) O normal plane O o = (M(hf+tm))/(btm (hf+tm ) O oblique plane O o= (M(hf+2tm))/(btm (hf+tm )^2) O dimension plane O 4

Step by Step Solution

★★★★★

3.39 Rating (158 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

AOption C Zero sh... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
