Prob 1 LC3

If we implement a runtime stack using an array, we dont need a dynamic link pointer to the activation record, so all we need are spaces for parameters, the return value, the return address, and local variables. A sketch of the program from Problem 1 into low-level pseudocode follows. You are to implement the pseudocode in LC3 assembler. (You dont have to stop at locations A and B in Problem 1.) When calling RecSum, the stack should have S as the top element and N just below it. (Ill write this as N S [top to the right].) RecSum should begin by completing the activation record (stack = N S [space for result] R7) * . When RecSum returns, the stack should be N S result (because R7 was popped off to restore it).. The top-level call to RecSum is done by Sum, which is called by the main program. Sum should initialize the stack, set it to R7 N 0 and call RecSum. When RecSum returns, Sum should pop the returned value off the stack and return it (after clearing out the stack). Note: RecSum is written as a tail-recursive routine: Once the base case figures out what it wants to return, all of the recursive calls just return that same value

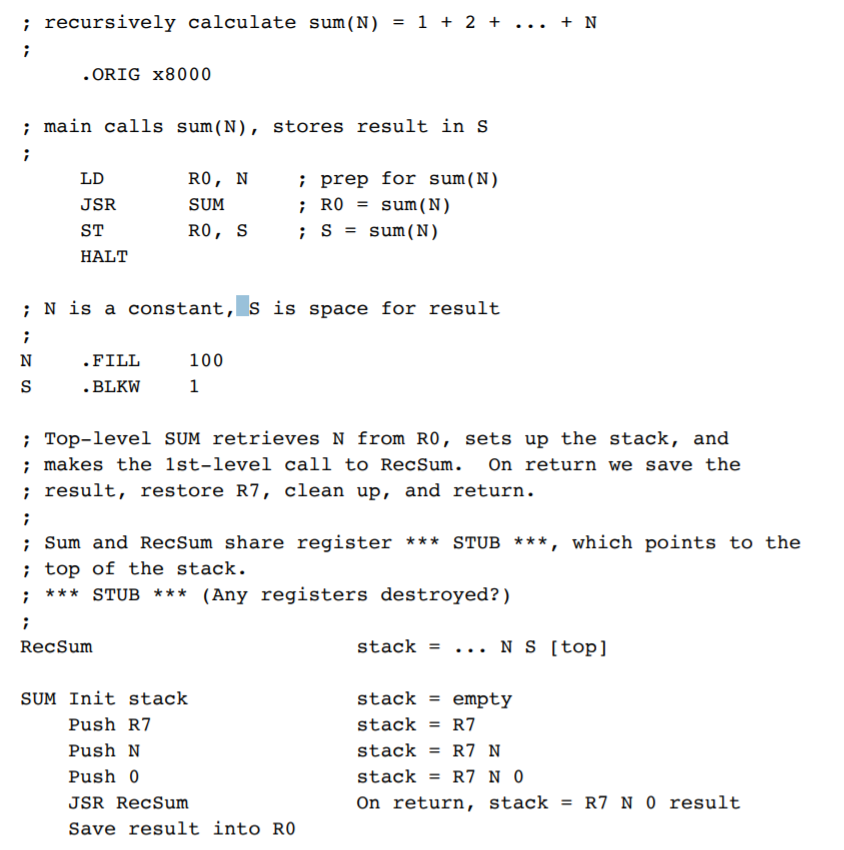

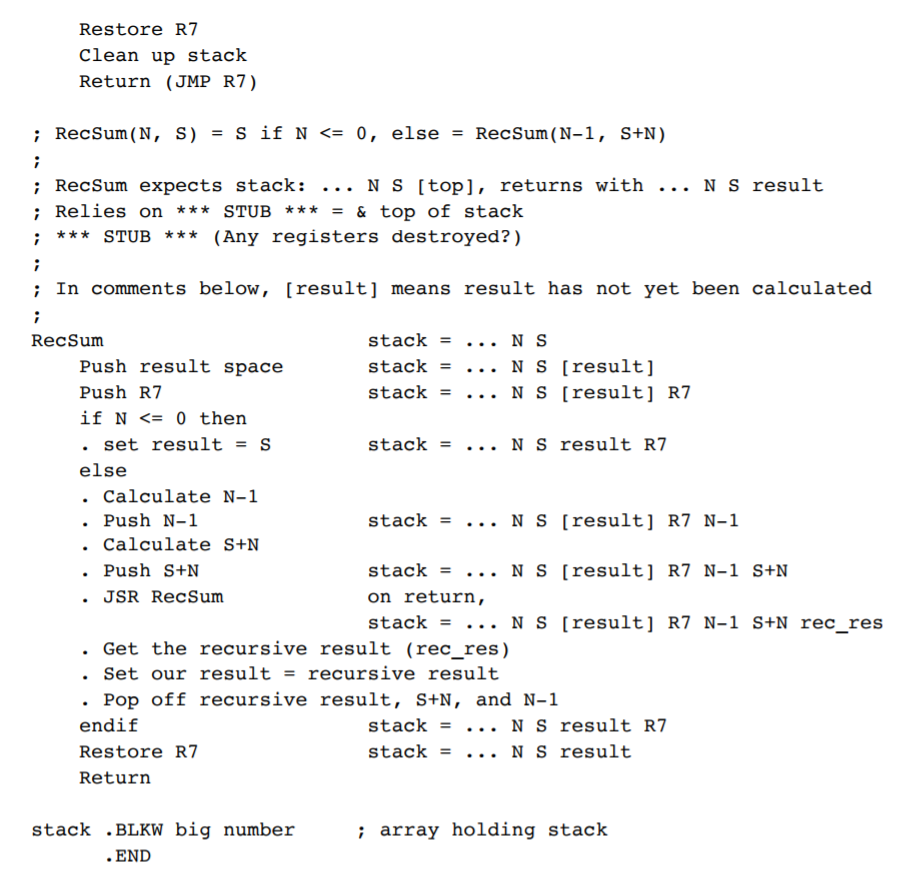

(***STUB*** to fill the code for .asm file )

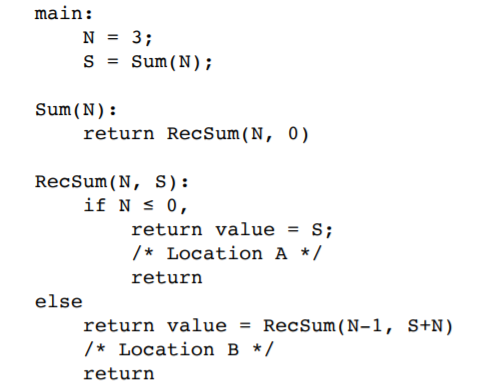

main: N=3; S = Sum (N); Sum (N): return RecSum (N, 0) RecSum(N, S): if Ns0, return value = s; /*Location A/ return else return value RecSum(N-1, S+N) /* Location B * return main: N=3; S = Sum (N); Sum (N): return RecSum (N, 0) RecSum(N, S): if Ns0, return value = s; /*Location A/ return else return value RecSum(N-1, S+N) /* Location B * return
