Question: Prob. 8 . 5 . 7 p . IP - 1 0 8 [ Ans: 0 . 0 3 8 8 ; 0 . 7

Prob. 8.5.7 p. IP-108[Ans: 0.0388;0.75 psi].

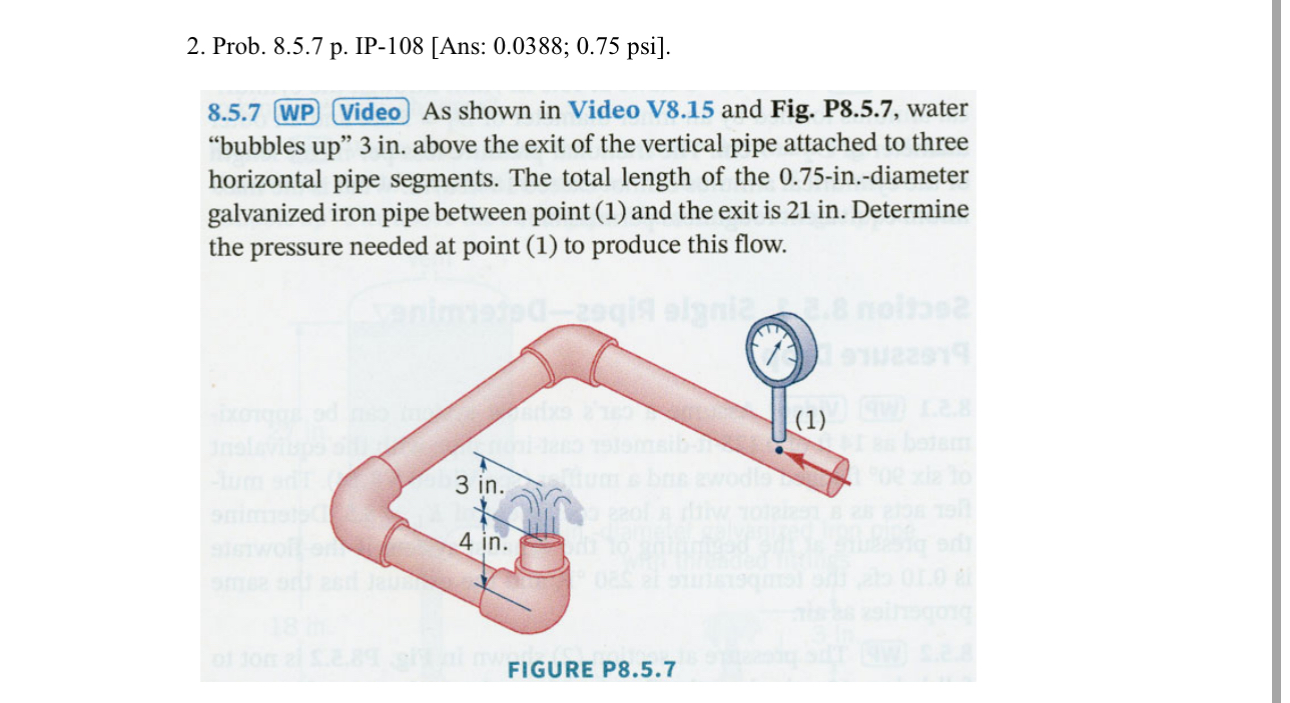

8.5.7 WP Video As shown in Video V8.15 and Fig. P8.5.7, water "bubbles up"3 in. above the exit of the vertical pipe attached to three horizontal pipe segments. The total length of the 0.75-in.-diameter galvanized iron pipe between point (1) and the exit is 21in. Determine the pressure needed at point (1) to produce this flow.
Prob. 8 . 5 . 7 p . IP - 1 0 8 [ Ans: 0 . 0 3 8 8
