Problem $02\mathrm{.}059-$ Thermal stresses in a composite rod $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN

ALL PARTS

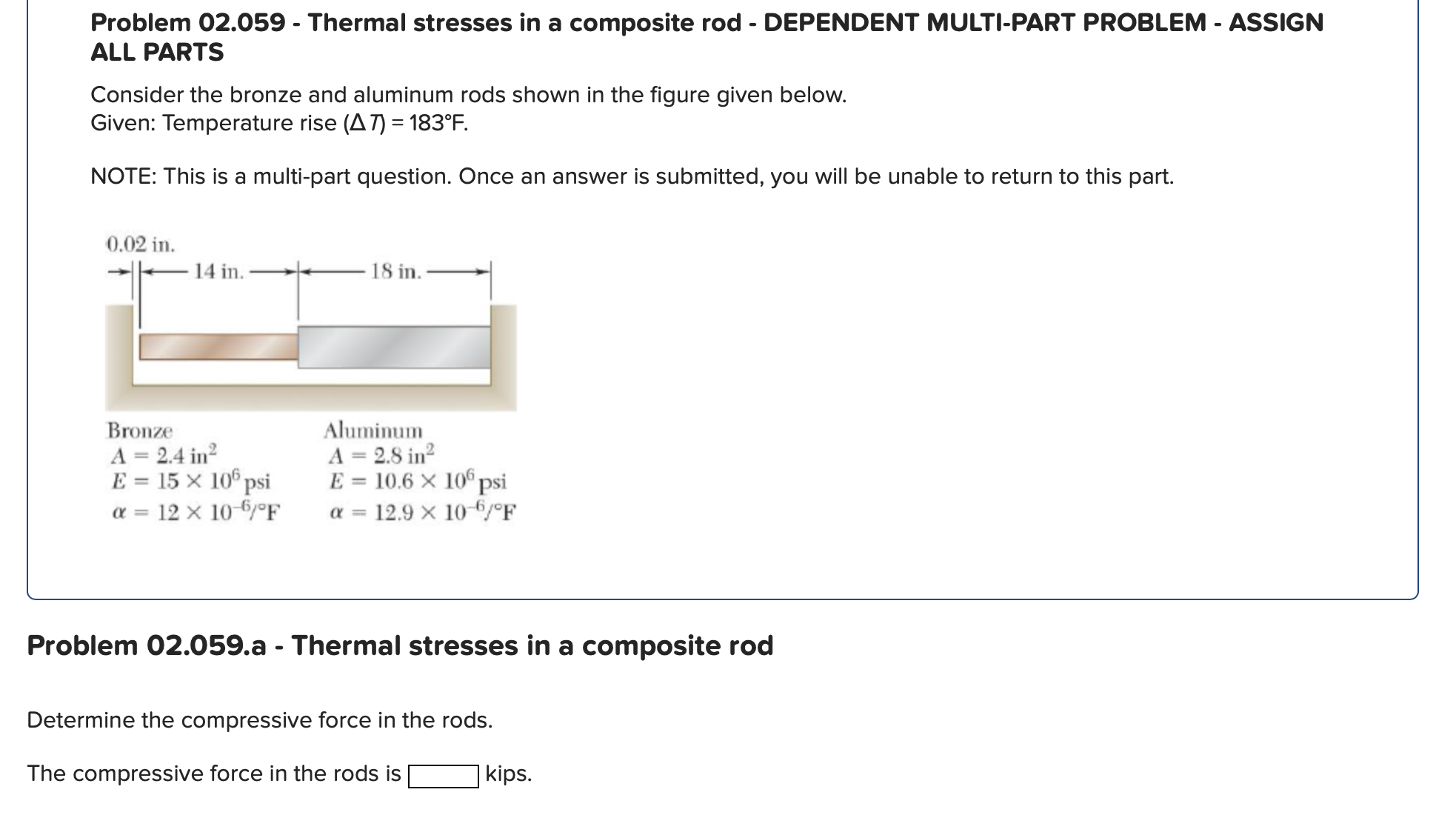

Consider the bronze and aluminum rods shown in the figure given below.

Given: Temperature rise $(T)=183F.$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Bronze

$A=2\mathrm{.}4$ in ${?}^2$

$E=15{10}^6$

$=12\frac{{10}^{-6}}{}F$

Aluminum

$A=2\mathrm{.}8$ in ${?}^2$

$E=10\mathrm{.}6{10}^6$

$=12\mathrm{.}9\frac{{10}^{-6}}{}F$

Problem $02\mathrm{.}059.$a $-$ Thermal stresses in a composite rod

Determine the compressive force in the rods.

The compressive force in the rods is

kips.
