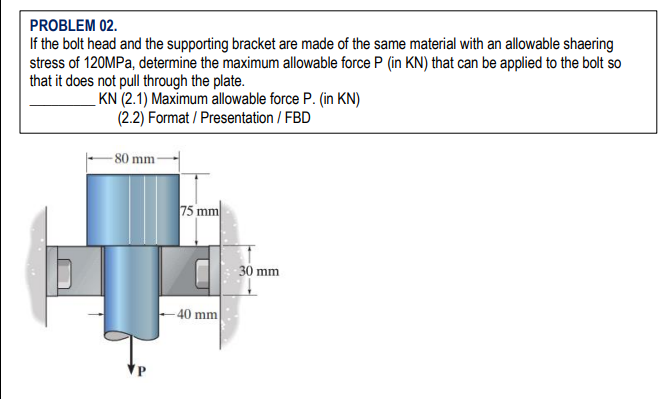

PROBLEM $02.$

If the bolt head and the supporting bracket are made of the same material with an allowable shaering

stress of $120$MPa, determine the maximum allowable force $P($in $KN)$ that can be applied to the bolt so

that it does not pull through the plate.

KN

$(2\mathrm{.}1)$ Maximum allowable force P$.($in KN$)$

$(2\mathrm{.}2)$ Format $/$ Presentation $/$ FBD
