Problem $03\mathrm{.}111-$ Simplifying Systems of Forces

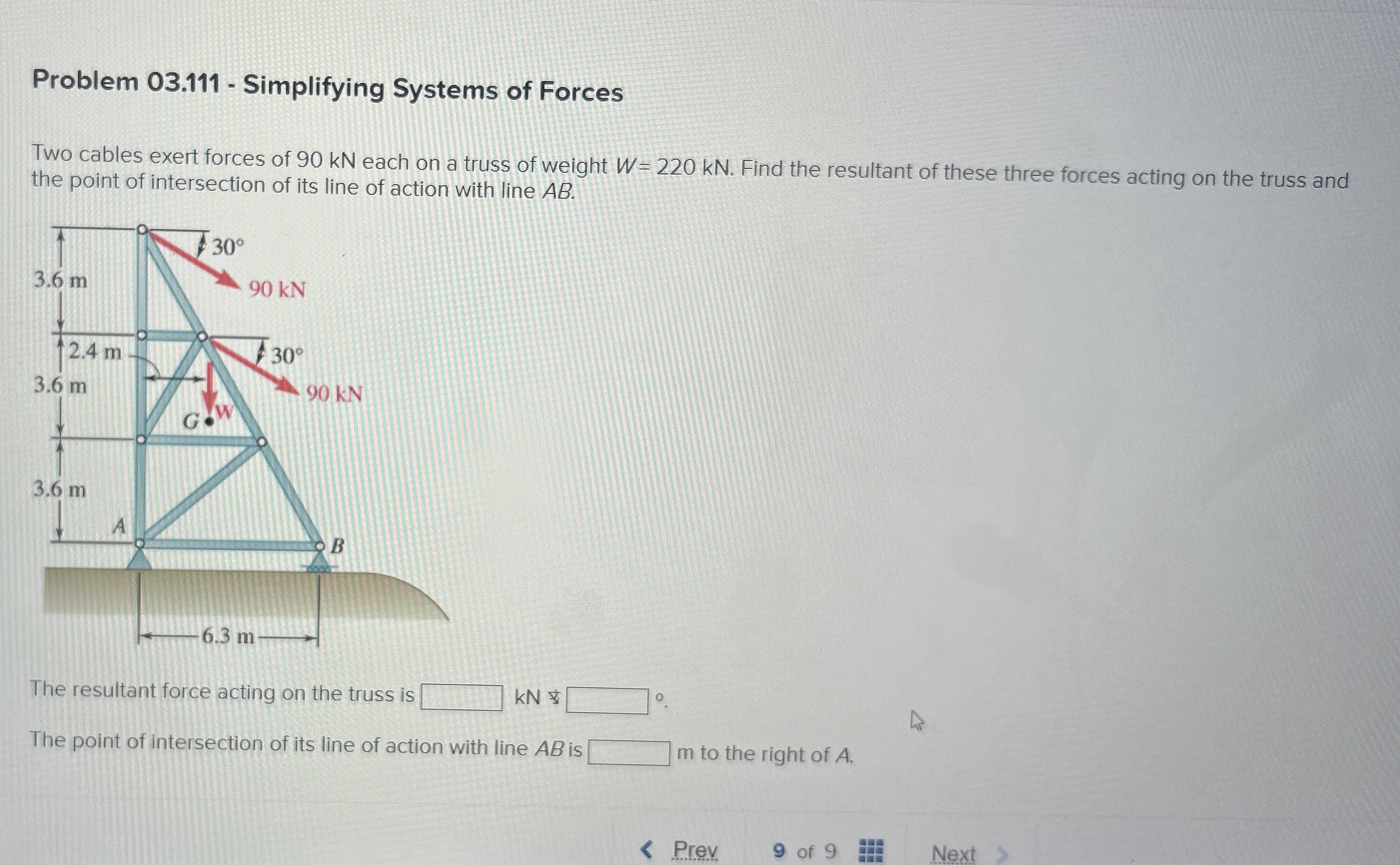

Two cables exert forces of $90$ kN each on a truss of weight $W=220kN.$ Find the resultant of these three forces acting on the truss and the point of intersection of its line of action with line $AB.$

The resultant force acting on the truss is $$ kN # $$

The point of intersection of its line of action with line $AB$ is $$ m to the right of $A.$
