Question: Problem 0 4 . 0 2 2 - Pin - cable supported lever - DEPENDENT MULTI - PART PROBLEM - ASSIGN ALL PARTS A lever

Problem 04.022- Pin-cable supported lever - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS

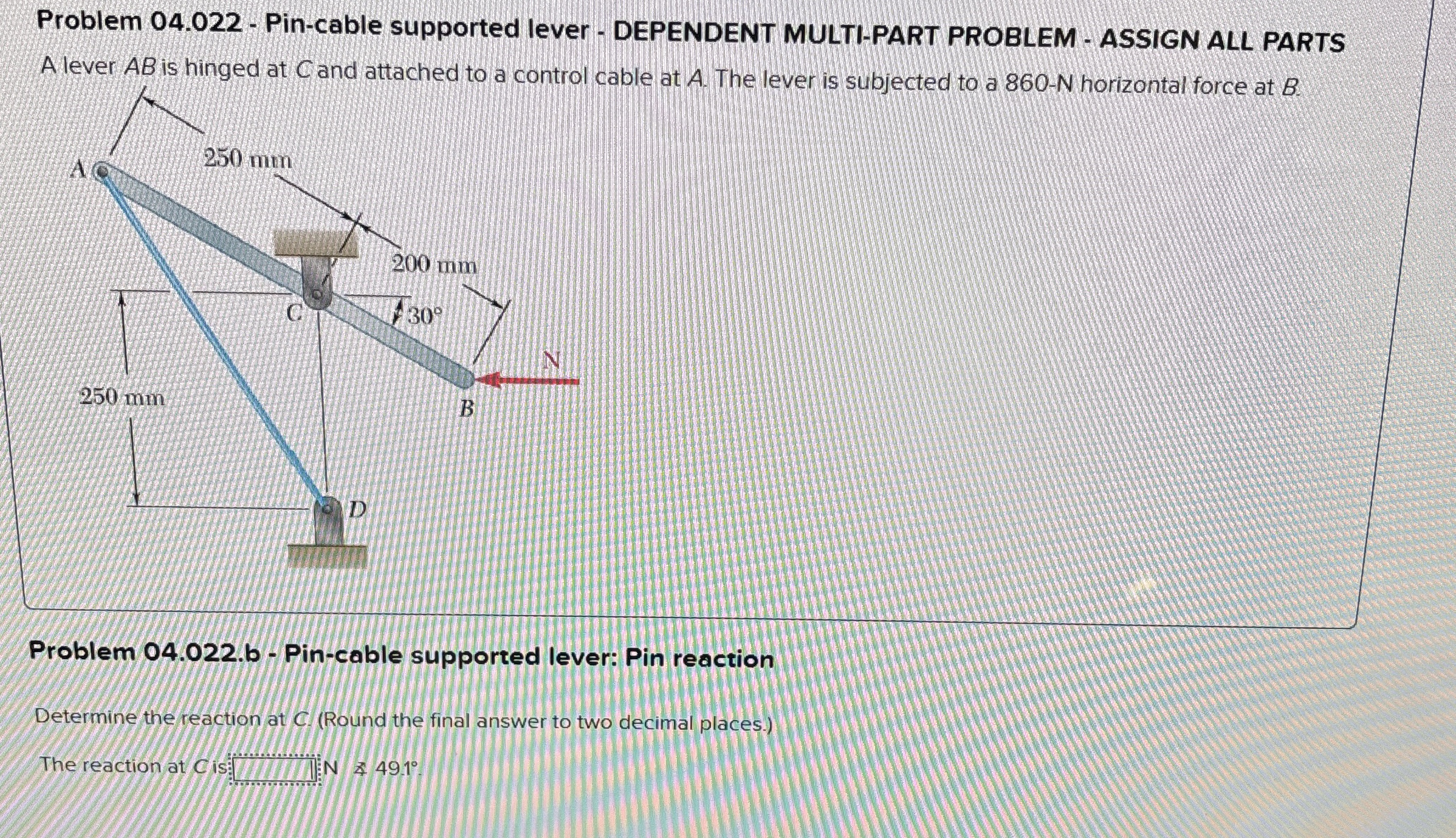

A lever AB is hinged at C and attached to a control cable at A. The lever is subjected to a 860-N horizontal force at B.
Problem 04.022.6-Pin-cable supported lever: Pin reaction
Determine the reaction at C.(Round the final answer to two decimal places.)
The reaction at C is
N=491
Problem 0 4 . 0 2 2 - Pin - cable supported lever

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
