Question: Problem 0 5 . 0 6 6 - Design a timber beam for the given loading and allowable stress For the beam and loading shown,

Problem 05.066- Design a timber beam for the given loading and allowable stress

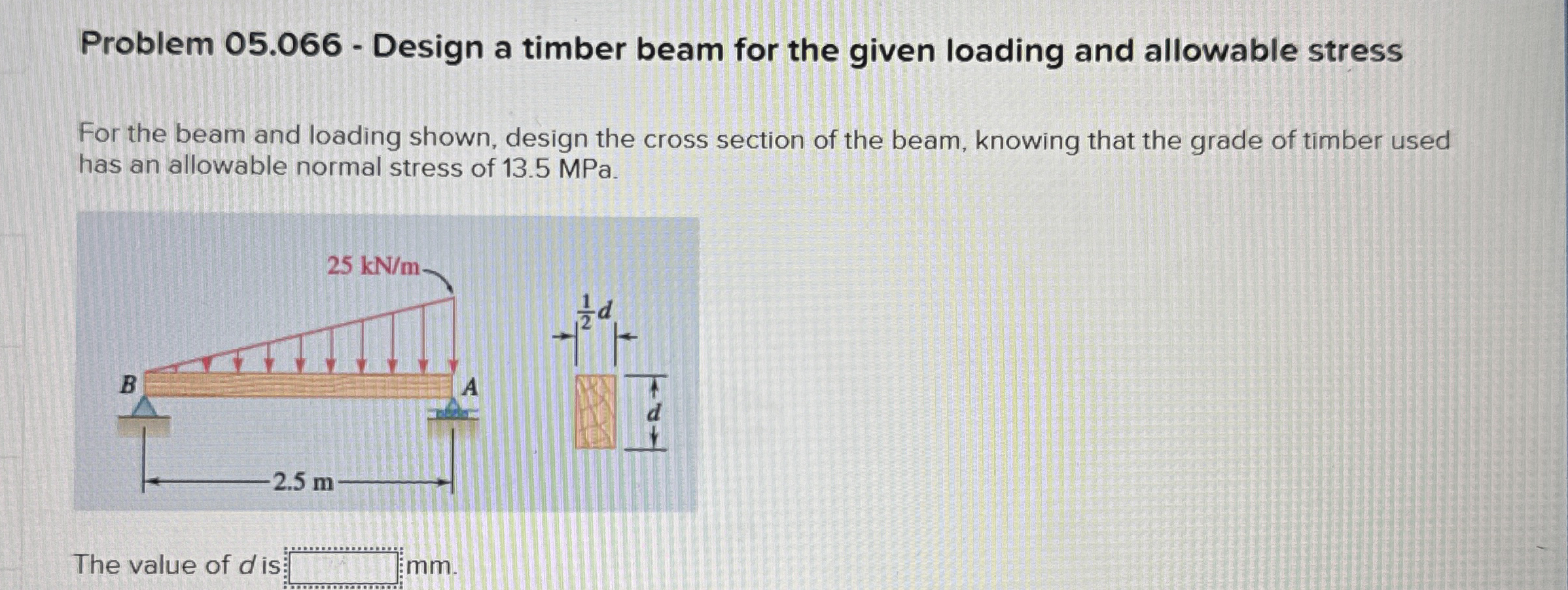

For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 13.5 MPa .
The value of d is mm
Problem 0 5 . 0 6 6 - Design a timber beam for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
