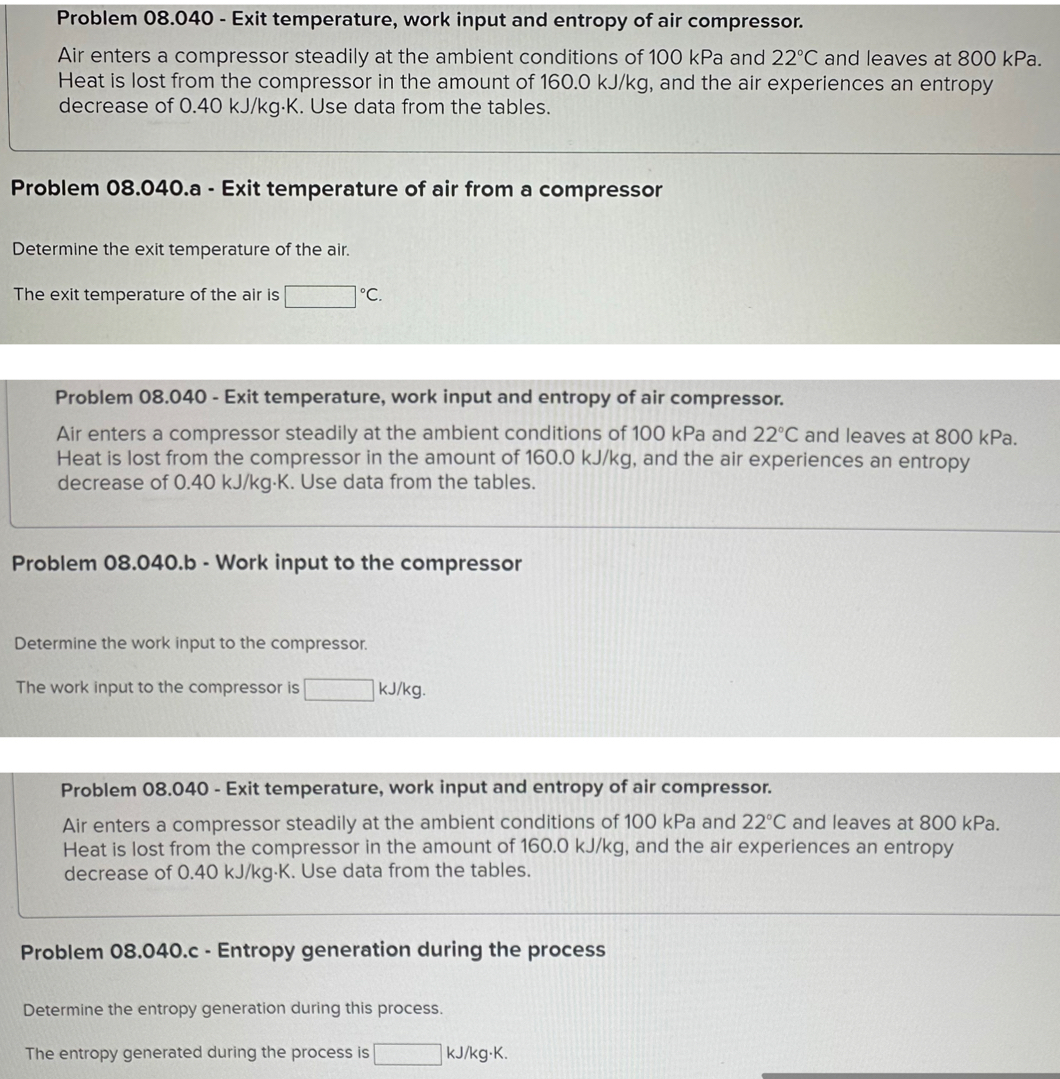

Problem $08\mathrm{.}040-$ Exit temperature, work input and entropy of air compressor.

Air enters a compressor steadily at the ambient conditions of $100$ kPa and $22C$ and leaves at $800$ kPa $.$ Heat is lost from the compressor in the amount of $160\mathrm{.}0k\frac{J}{k}g,$ and the air experiences an entropy decrease of $0\mathrm{.}40k\frac{J}{k}g*K.$ Use data from the tables.

Problem $08\mathrm{.}040.$a $-$ Exit temperature of air from a compressor

Determine the exit temperature of the air.

The exit temperature of the air is $C.$

Problem $08\mathrm{.}040-$ Exit temperature, work input and entropy of air compressor.

Air enters a compressor steadily at the ambient conditions of $100$ kPa and $22C$ and leaves at $800$ kPa $.$ Heat is lost from the compressor in the amount of $160\mathrm{.}0k\frac{J}{k}g,$ and the air experiences an entropy decrease of $0\mathrm{.}40k\frac{J}{k}g*K.$ Use data from the tables.

Problem $08\mathrm{.}040.$b $-$ Work input to the compressor

Determine the work input to the compressor.

The work input to the compressor is $k\frac{J}{k}g.$

Problem $08\mathrm{.}040-$ Exit temperature, work input and entropy of air compressor.

Air enters a compressor steadily at the ambient conditions of $100$ kPa and $22C$ and leaves at $800$ kPa $.$ Heat is lost from the compressor in the amount of $160\mathrm{.}0k\frac{J}{k}g,$ and the air experiences an entropy decrease of $0\mathrm{.}40k\frac{J}{k}g*K.$ Use data from the tables.

Problem $08\mathrm{.}040.$c $-$ Entropy generation during the process

Determine the entropy generation during this process.

The entropy generated during the process is $k\frac{J}{k}g*K.$
