Question: Problem 0 9 . 0 7 6 - Using the superposition method, determine the deflection and slope at the specified points for the cantilever beam

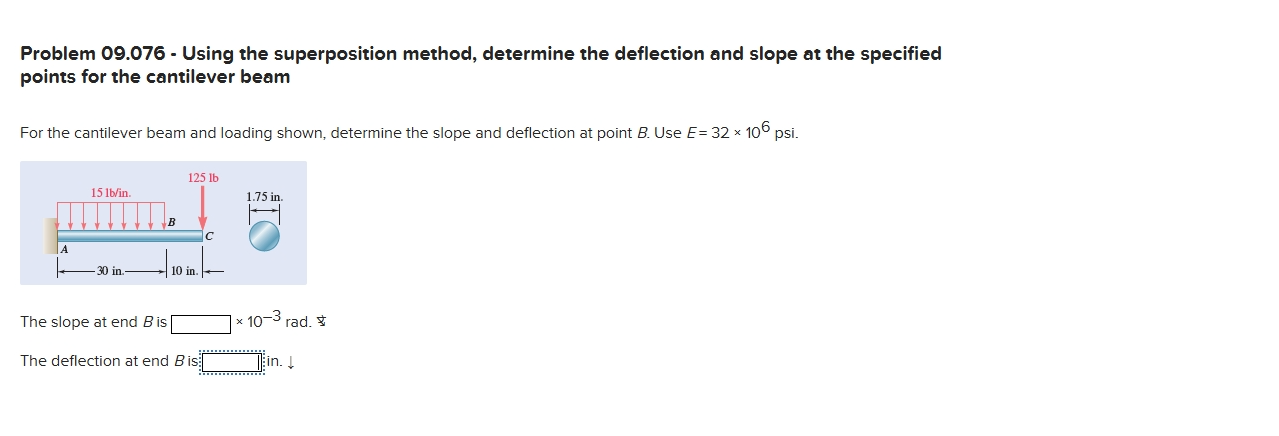

Problem 09.076- Using the superposition method, determine the deflection and slope at the specified
points for the cantilever beam
For the cantilever beam and loading shown, determine the slope and deflection at point B. Use E=32106 psi.
The slope at end B is
10-3 rad.
The deflection at end B is
in. darr pls solve these 2 questions thank you
Problem 0 9 . 0 7 6 - Using the superposition
