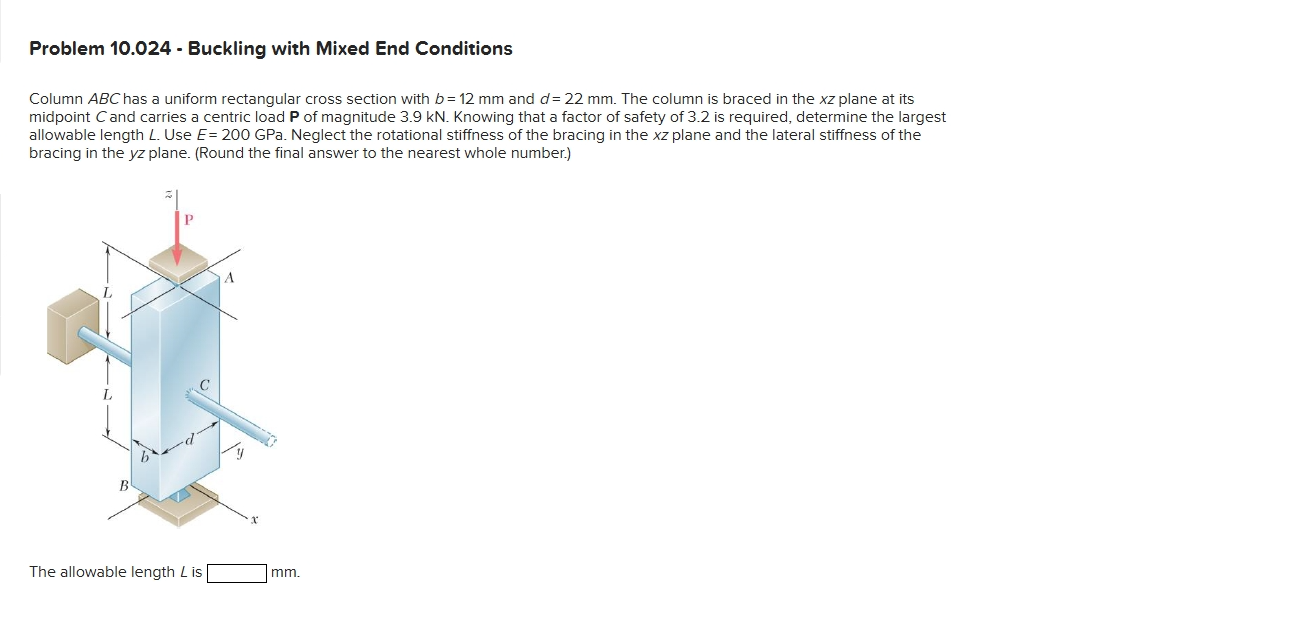

Problem 10.024- Buckling with Mixed End Conditions
Column ABC has a uniform rectangular cross section with b=12mm and d=22mm. The column is braced in the xz plane at its
midpoint C and carries a centric load P of magnitude 3.9 kN . Knowing that a factor of safety of 3.2 is required, determine the largest
allowable length L. Use E=200GPa. Neglect the rotational stiffness of the bracing in the xz plane and the lateral stiffness of the
bracing in the yz plane. (Round the final answer to the nearest whole number.)
Problem 1 0 . 0 2 4 - Buckling with Mixed End
