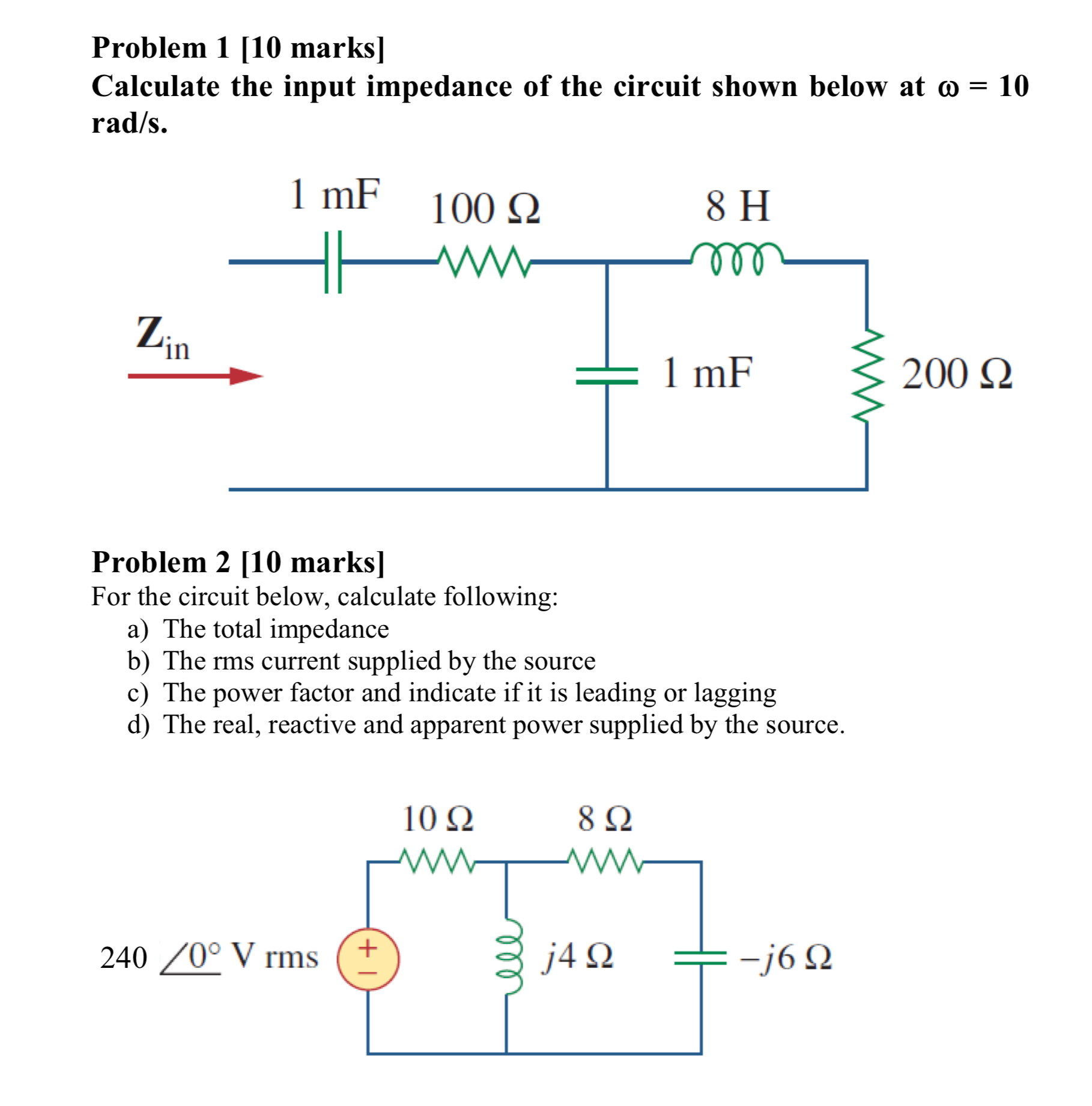

Problem $1[10$ marks$]$

Calculate the input impedance of the circuit shown below at $=10$ rad$/$s$.$

Problem $2[10$ marks$]$

For the circuit below, calculate following:

a$)$ The total impedance

b$)$ The rms current supplied by the source

c$)$ The power factor and indicate if it is leading or lagging

d$)$ The real, reactive and apparent power supplied by the sourcE
