Question: Problem 1 ( 1 0 points ) A square gate A B is held in the position shown along its top edge A and by

Problem 1(10 points)

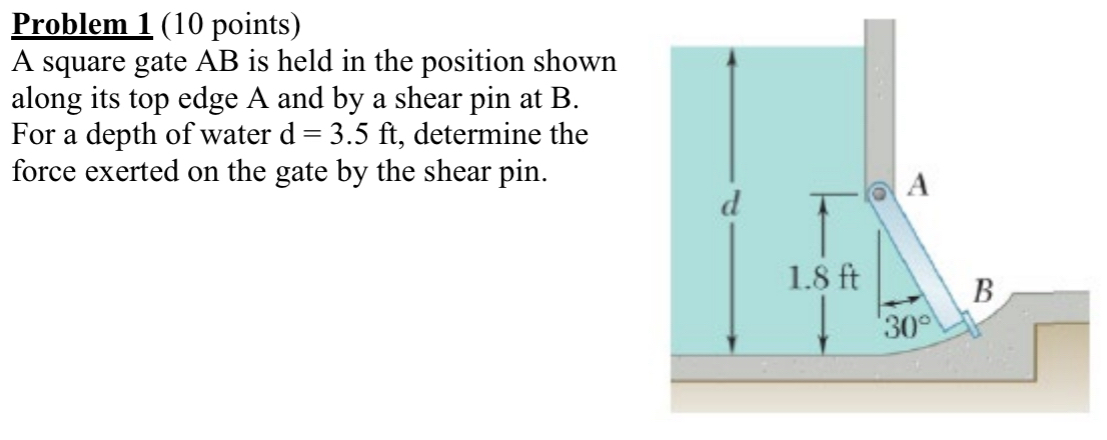

A square gate AB is held in the position shown along its top edge A and by a shear pin at B . For a depth of water d=3.5ft, determine the force exerted on the gate by the shear pin.
Problem 1 ( 1 0 points ) A square gate A B is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The square gate AB is held in the position shown by hinges along its top edge A and by a shear pin at B. For a depth of water d = 3.5 m, determine the force exerted on the gate by the shear pin. 1.8...
