Question: PROBLEM 1 . 1 2 The rigid bar EFG is supported by the truss system shown. Knowing that the member C G is a solid

PROBLEM 1.12

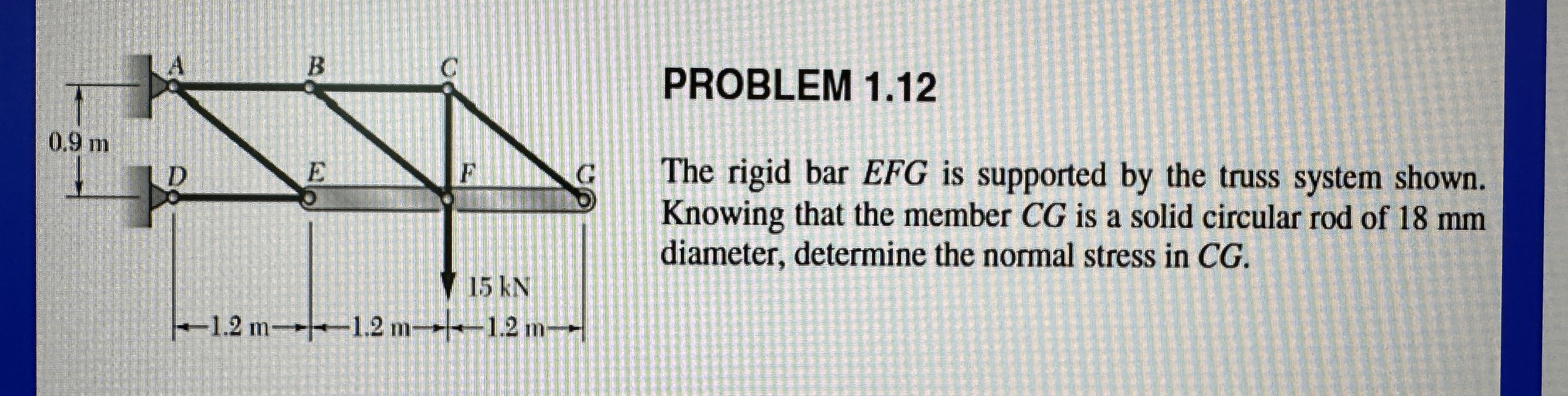

The rigid bar EFG is supported by the truss system shown. Knowing that the member CG is a solid circular rod of 18 mm diameter, determine the normal stress in DE AE BF CF and CG.
PROBLEM 1 . 1 2 The rigid bar EFG is supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
