Question: Problem 1 ( 1 5 points ) Consider the compound beam shown below. Determine the reactions at the supports, and then: Develop the equations describing

Problem 1(15 points)

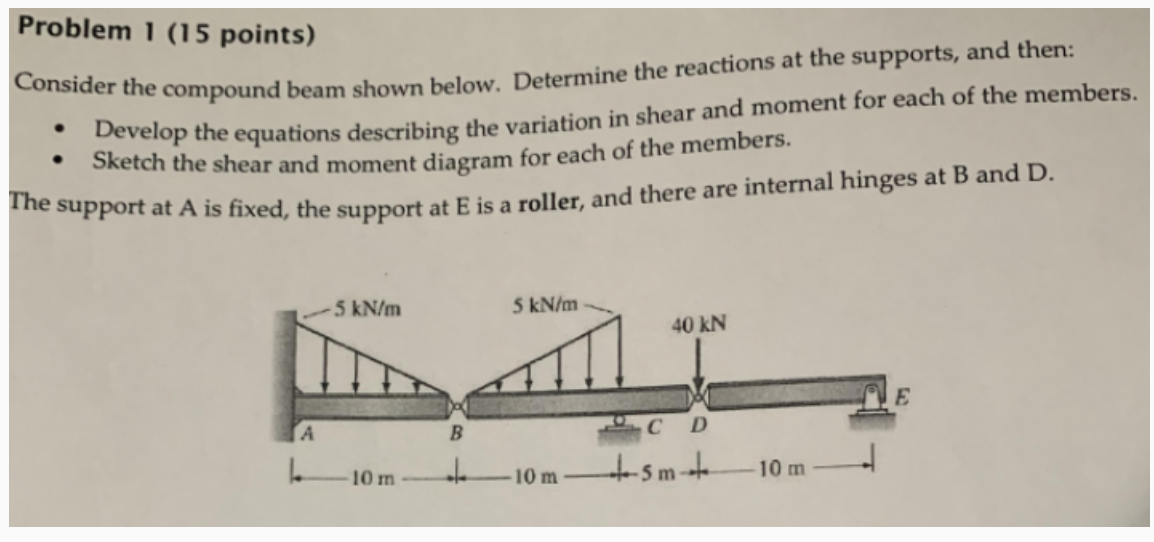

Consider the compound beam shown below. Determine the reactions at the supports, and then:
Develop the equations describing the variation in shear and moment for each of the members.
Sketch the shear and moment diagram for each of the members.
The support at A is fixed, the support at E is a roller, and there are internal hinges at B and D.
Problem 1 ( 1 5 points ) Consider the compound

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
