Question: The rigid beam rests in the horizontal position on two 2 0 1 4 - T 6 aluminum cylinders having the unloaded lengths shown in

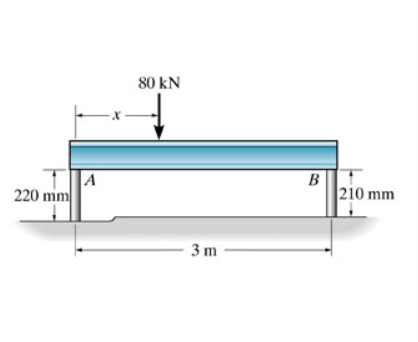

The rigid beam rests in the horizontal position on two 2014-T6 aluminum cylinders having the unloaded lengths shown in (Figure 1). Each cylinder has a diameter of 32 mm
. Take
u al
=0.35
Determine the placement x
of the applied 80- kN
load so that the beam remains horizontal.
What is the increase in the diameter of cylinder A
after the load is applied?
The rigid beam rests in the horizontal position

Step by Step Solution

There are 3 Steps involved in it
