Question: Problem 1 2 - 2 7 Determine ( approximately ) the force in each truss member of the portal frame. Also find the reactions at

Problem 12-27

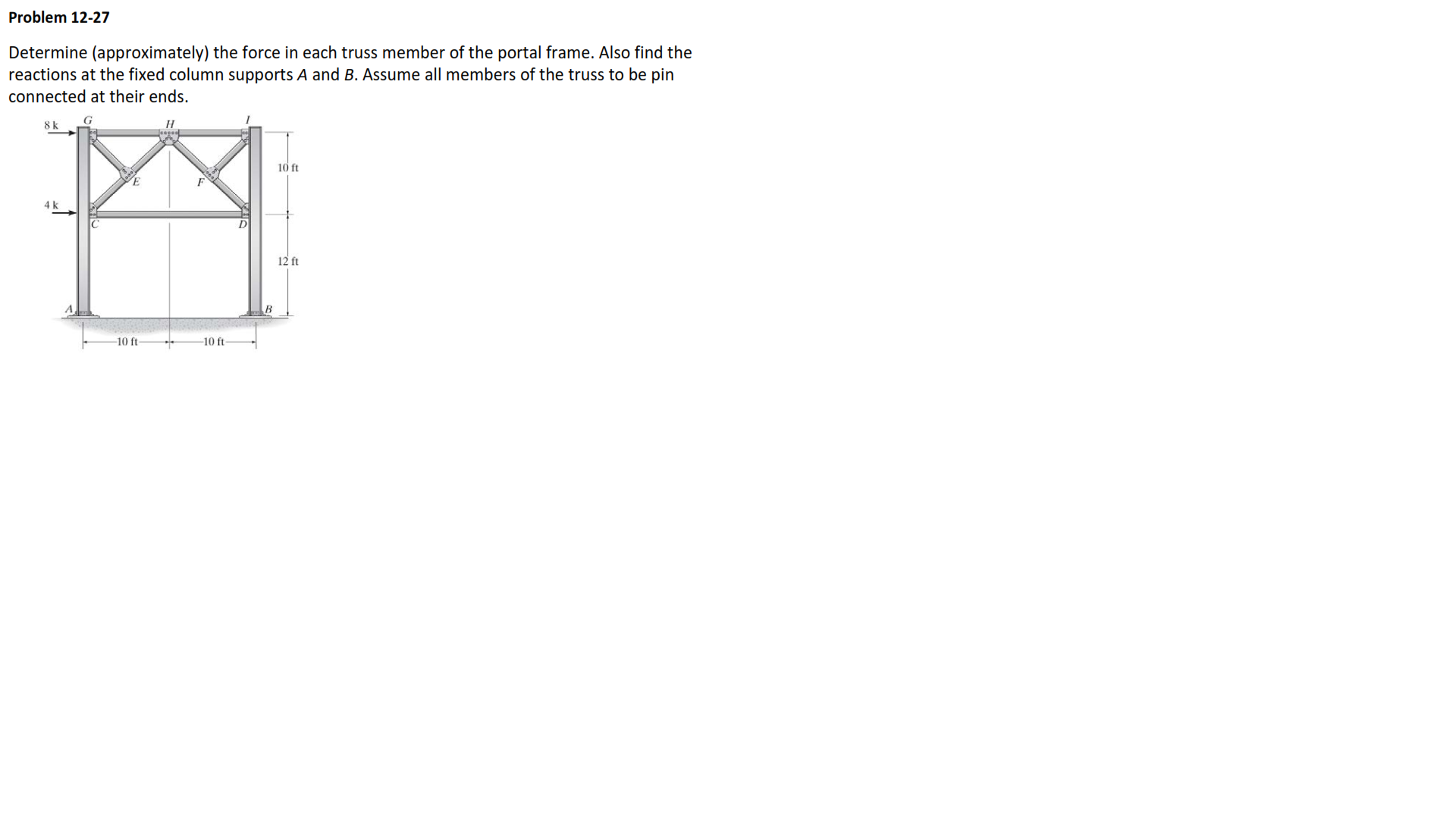

Determine (approximately) the force in each truss member of the portal frame. Also find the reactions at the fixed column supports A and B. Assume all members of the truss to be pin connected at their ends.
Problem 1 2 - 2 7 Determine ( approximately ) the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
