Question: Problem 4 : Given: The cable shown. Determine: P 1 and P 2 and cable forces. Start with cable segment D E , then C

Problem 4: Given: The cable shown.

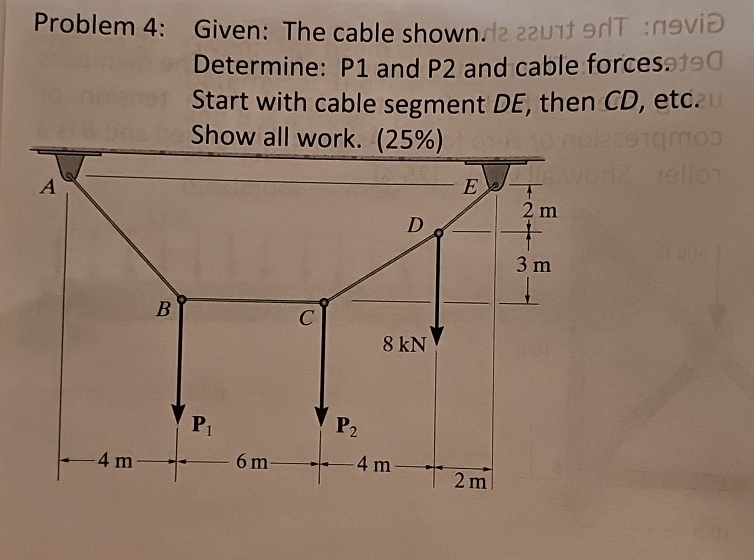

Determine: P1 and P2 and cable forces. Start with cable segment DE, then CD, etc.
Show all work. (25%)
Problem 4 : Given: The cable shown. Determine: P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
