Question: Problem # 1 : ( 2 5 points ) The cross section shown in Figure 1 is subjected to an upward vertical shear force of

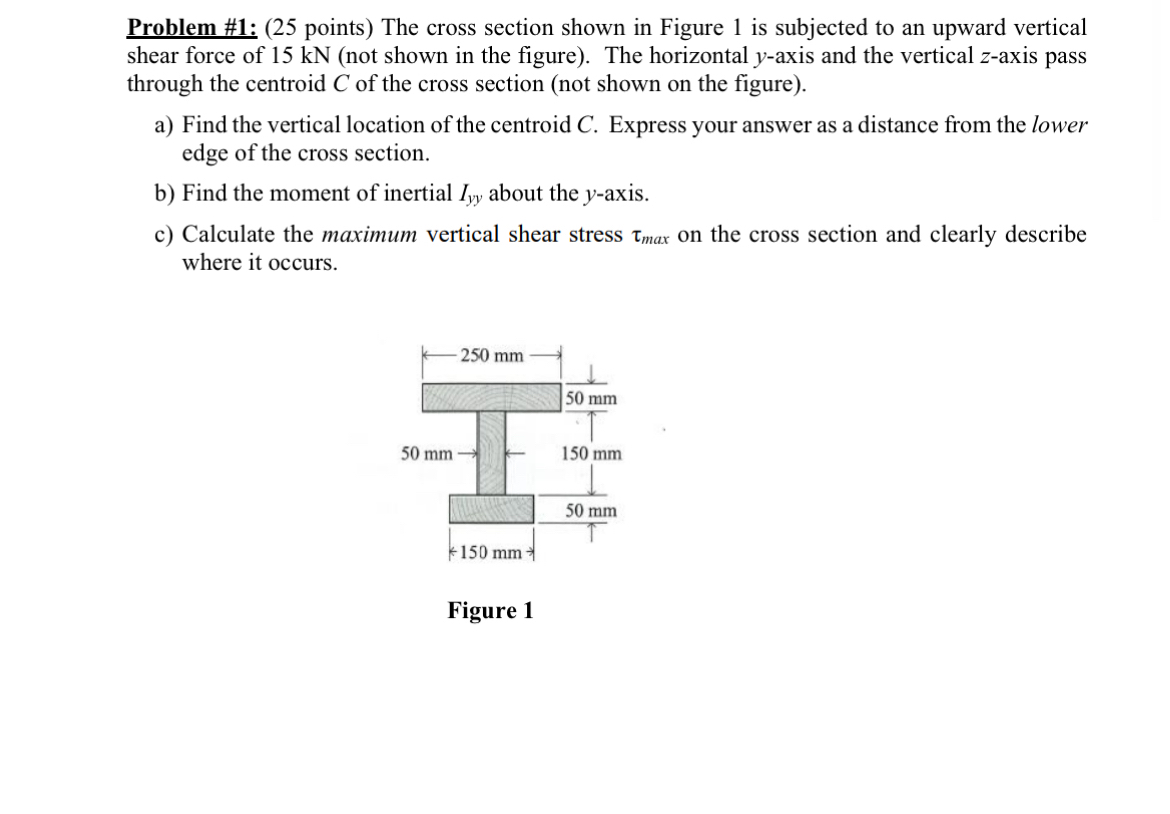

Problem #1: (25 points) The cross section shown in Figure 1 is subjected to an upward vertical shear force of 15 kN (not shown in the figure). The horizontal y-axis and the vertical z-axis pass through the centroid C of the cross section (not shown on the figure).
a) Find the vertical location of the centroid C. Express your answer as a distance from the lower edge of the cross section.
b) Find the moment of inertial Iyy about the y-axis.
c) Calculate the maximum vertical shear stress max on the cross section and clearly describe where it occurs.
Problem # 1 : ( 2 5 points ) The cross section

Step by Step Solution

There are 3 Steps involved in it
