Question: Problem #1 (24 points) - Show your work: An object is located to the left of a compound system consisting of a converging lens (lens

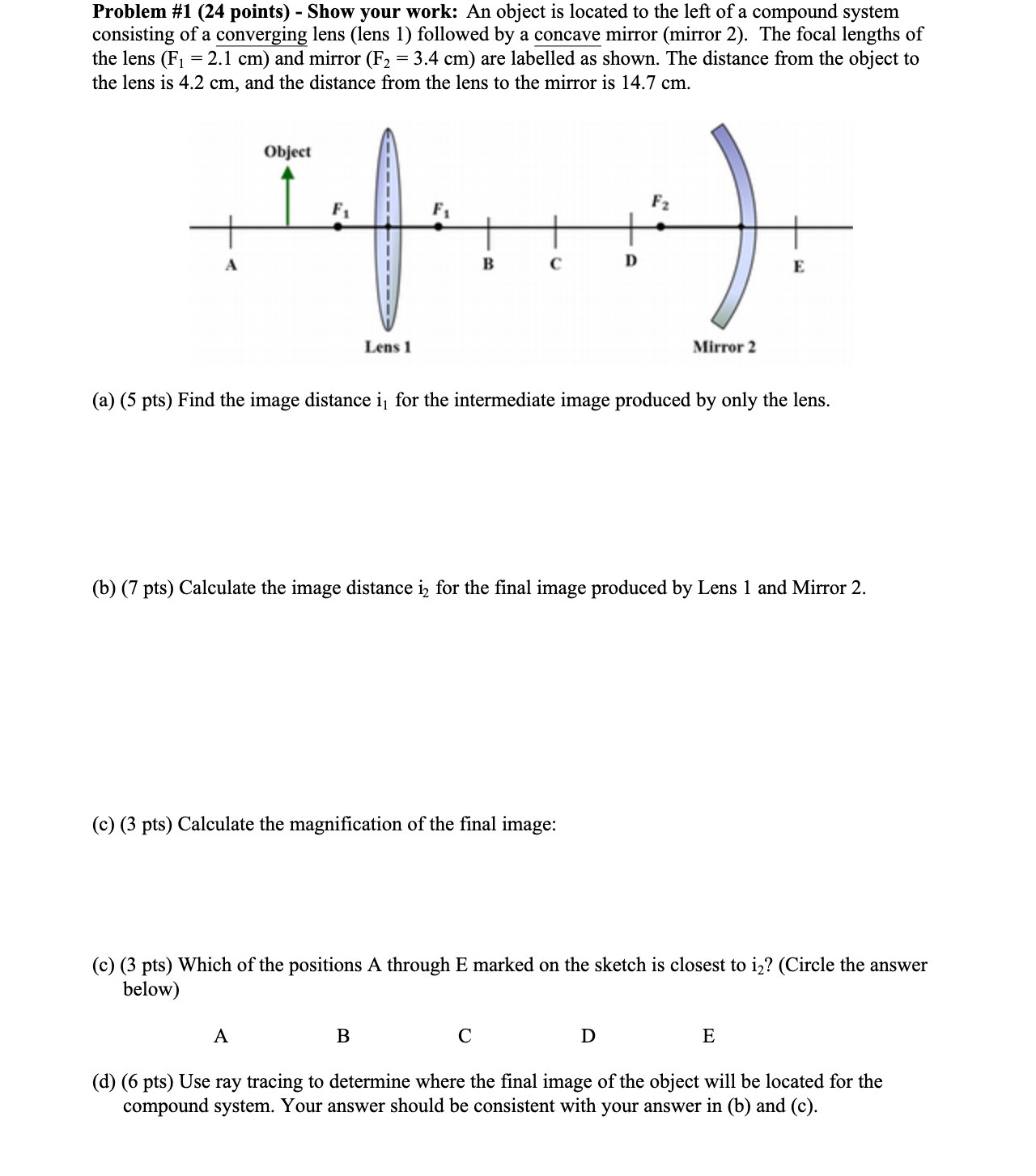

Problem #1 (24 points) - Show your work: An object is located to the left of a compound system consisting of a converging lens (lens 1) followed by a concave mirror (mirror 2). The focal lengths of the lens (F 1 : 2.1 cm) and mirror (F2 : 3.4 cm) are labelled as shown. The distance from the object to the lens is 4.2 cm, and the distance from the lens to the mirror is 14.7 cm. has I erm 1 (a) (5 pts) Find the image distance i1 for the intermediate image produced by only the lens. (b) ('7 pts) Calculate the image distance i; for the nal image produced by Lens 1 and Mirror 2. (c) (3 pts) Calculate the magnication of the nal image: (c) (3 pts) Which of the positions A through E marked on the sketch is closest to i2? (Circle the answer below) A B C D E (d) (6 pts) Use ray tracing to determine where the nal image of the object will be located for the compound system. Your answer should be consistent with your answer in (b) and (c)
