Problem $13-2$

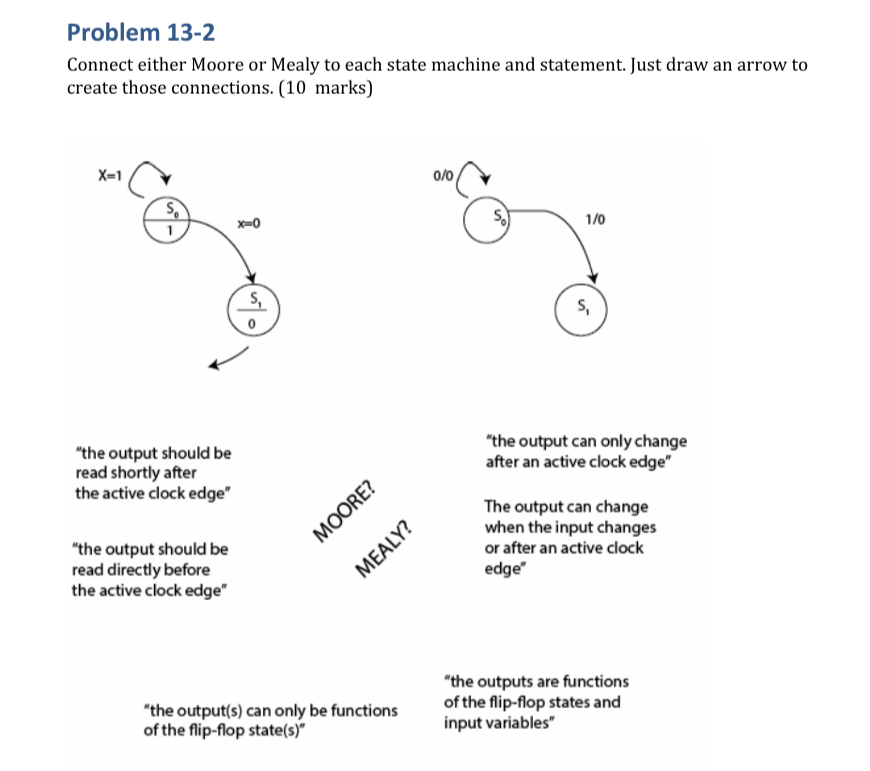

Connect either Moore or Mealy to each state machine and statement. Just draw an arrow to create those connections. $(10$ marks$)$

"the output should be read shortly after the active clock edge"

"the output should be read directly before the active clock edge"

of the flip$-$flop state$($s$)"$

"the output can only change after an active clock edge"

The output can change when the input changes or after an active clock edge"
