Question: Problem 1: (30 pts) Consider a single-input single-output system with the following transfer function: K G(s) 4s + 2 When a unit step change is

Problem 1: (30 pts) Consider a single-input single-output system with the

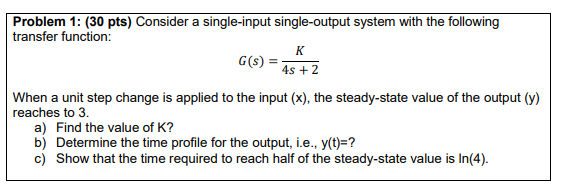

Problem 1: (30 pts) Consider a single-input single-output system with the following transfer function: K G(s) 4s + 2 When a unit step change is applied to the input (x), the steady-state value of the output (y) reaches to 3. a) Find the value of K? b) Determine the time profile for the output, i.e., y(t)=? c) Show that the time required to reach half of the steady-state value is In(4)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
