Problem $1(5$ pts$)$

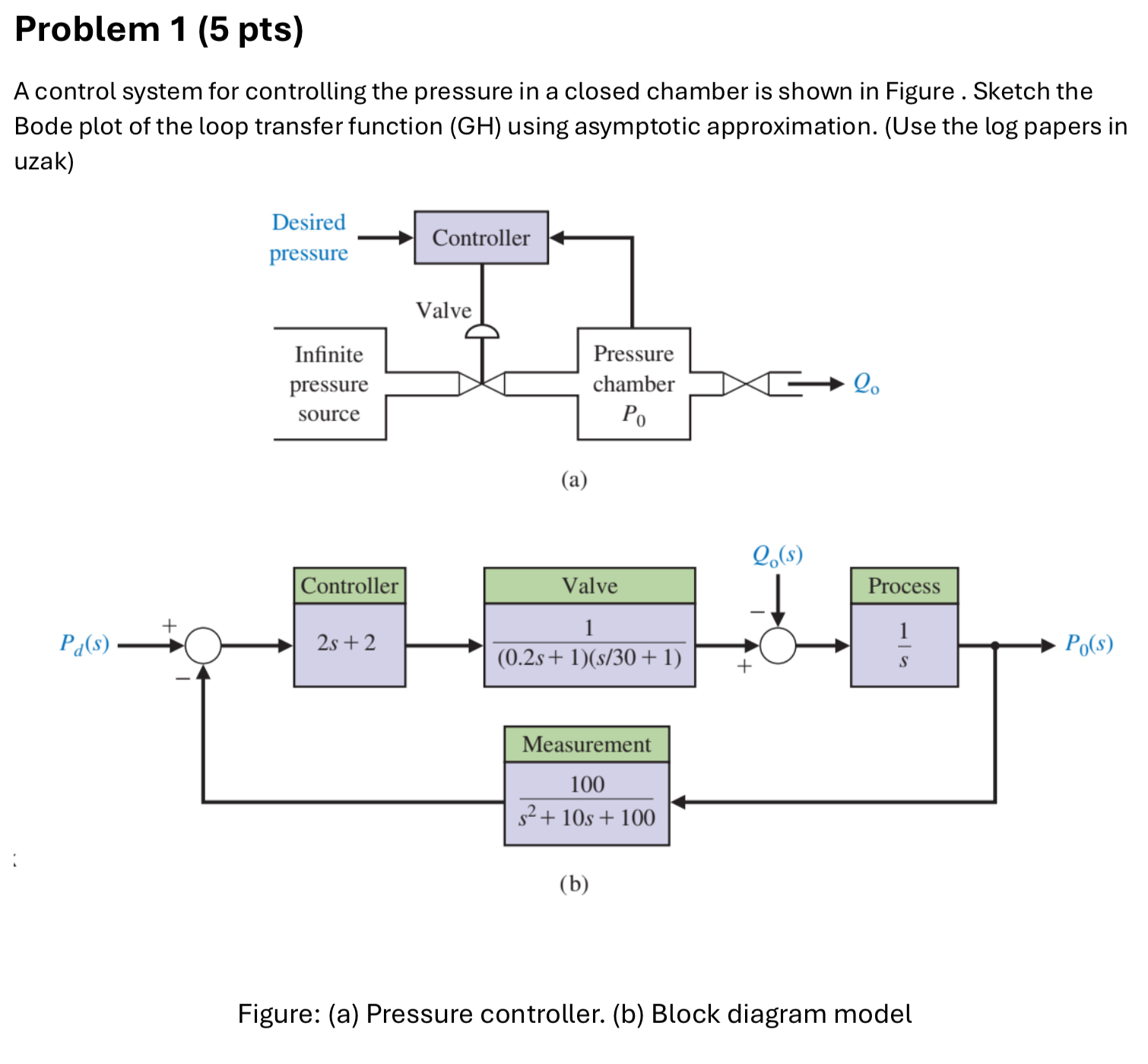

A control system for controlling the pressure in a closed chamber is shown in Figure. Sketch the Bode plot of the loop transfer function $($GH$)$ using asymptotic approximation. $($Use the log papers in uzak$)$

$($b$)$

Figure: $($a$)$ Pressure controller. $($b$)$ Block diagram model
